293-1136 Air Conditioner Control Panel Applied To 324D 325D Excavator Parts
- 293-1136 Air Conditioner Control Panel Applied To 324D 325D Excavator Parts
| Excavator spare parts name | control panel |
| Equipment Model | 325D |
| Parts egory | excavator ENGINE spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
The control panel could be applied to below models:
307D . 311D LRR . 312D . 312D L . 312D2 . 312D2 GC . 312D2 L . 313D . 313D2 . 313D2 LGP . 315D L . 318D L . 318D2 L . 319D . 319D L . 319D LN . 320D . 320D FM . 320D FM RR . 320D GC . 320D L . 320D LN . 320D LRR . 320D RR . 320D2 L . 323D L . 323D LN . 323D SA . 323D2 L . 324D . 324D L . 324D LN . 325D . 325D L . 325D MH . 326D L . 328D LCR . 329D . 329D L . 329D LN . 330D . 330D L . 330D LN . 330D MH . 336D . 336D L . 336D LN . 340D L . 345C . 345C L . 345C MH . 345D . 345D L . 345D L VG . 349D . 349D L . 365C . 365C L . 365C L MH . 374D L . 385C . 385C FS . 385C L . 385C L MH . 390D . 390D L . M313D . M315D . M315D 2 . M316D . M317D 2 . M318D . M318D MH . M322D . M322D MH . M325D L MH . M325D MH . M330D . MH3037 . MH3049 . MH3059 . W345C MH .

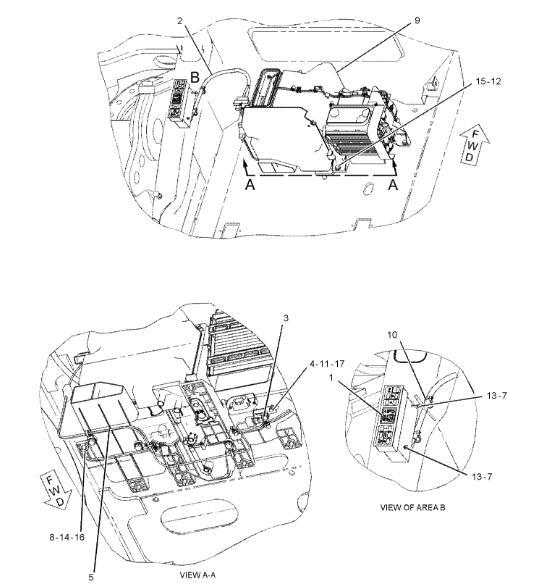

parts diagram:
PANEL AS-CONTROL
2.235-8873[1] -
HARNESS AS-HEATER & AIR COND (CONTROL PANEL SWITCHES) .
3.235-8874[1] -
SENSOR-TEMPERATURE (AMBIENT AIR) .
4.235-8875[1] -
BRACKET .
5.235-9006[1] -
HARNESS AS-HEATER & AIR COND .
7.099-2374 M[2] -
BOLT-SOCKET HEAD (M5X0.8X12-MM)
8.111-4836[3] -
CLIP
9.229-9081 Y[1] -
AIR CONDITIONER GP .
10.3S-2093[2] -
STRAP-CABLE
11.5C-9553 M[1] -
BOLT (M6X1X16-MM)
12.7X-7729[7] -
WASHER (11X25X3-MM THK)
13.8T-0328[2] -
WASHER-HARD (5.5X10X1-MM THK)
14.8T-4121[3] -
WASHER-HARD (11X21X2.5-MM THK)
15.8T-4136 M[7] -
BOLT (M10X1.5X25-MM)
16.8T-4137 M[3] -
BOLT (M10X1.5X20-MM)
17.9X-8256[1] -
WASHER (6.6X12X2-MM THK)
