274-6719 2746719 Engine Oil Pressure Sensor Applied To Excavator Electric Parts

• 274-6719 2746719 Engine Oil Pressure Sensor Applied To Excavator Electric Parts

The pressure sensor could be applied to below models:

120K . 120K 2 . 12K . 12M . 12M 2 . 12M 3 . 12M 3 AWD . 140K . 140K 2 . 140M . 140M 2 . 140M 3 . 140M 3 AWD . 14M . 160K . 160M . 160M 2 . 160M 3 . 160M 3 AWD . 16M . 2290 . 2390 . 2391 . 2491 . 24M . 2590 . 2864C . 324D . 324D FM . 324D FM LL . 324D L . 324D LN . 325D . 325D FM . 325D FM LL . 325D L . 325D MH . 326D L . 328D LCR . 329D . 329D L . 329D LN . 330D . 330D FM . 330D L . 330D MH . 336D . 336D L . 336D LN . 336D2 . 336D2 L . 336E . 336E H . 336E HVG . 336E L . 336E LH . 336E LN . 336F L . 340D L . 340D2 L . 345C . 345C L . 345C MH . 345D . 345D L . 345D L VG . 349D . 349D L . 349E . 349E L . 349E L HVG . 349E L VG . 349F L . 3508 . 3508B . 3512 . 3512B . 3512C . 3516 . 3516B . 3516C . 365C . 365C L . 365C L MH . 374D L . 374F L . 385C . 385C FS . 385C L . 385C L MH . 390D . 390D L . 390F L . 511 . 521 . 521B . 522 . 522B . 525C . 532 . 535C . 541 . 541 2 . 545C . 551 . 552 . 552 2 . 568 FM LL . 583T . 584 . 586C . 587T . 611 . 613C II . 613G . 615C . 621B . 621G . 621H . 621K . 623G . 623H . 623K . 623K LRC . 627F . 627G . 627H . 627K . 627K LRC . 631D . 631E . 631G . 633E II . 637D . 637E . 637G . 651B . 657E . 657G . 725 . 725C . 730 . 730C . 735 . 735B . 740 . 740B . 770 . 770G . 770G OEM . 772 . 772G . 772G OEM . 773F . 773G . 773G LRC . 773G OEM . 775F . 775G . 775G LRC . 775G OEM . 777C . 777D . 777F . 777G . 793F . 793F AC . 793F CMD . 793F OEM . 793F-XQ . 795F AC . 795F XQ . 797 . 797B . 797F . 814F II . 815B . 815F II . 816F II . 824C . 824H . 824K . 825H . 825K . 826H . 826K . 834H . 834K . 836H . 836K . 844K . 854K . 950H . 962H . 966H . 966K . 966M . 966M XE . 972H . 972K . 972M . 972M XE . 973C . 973D . 980C . 980G . 980H . 980K . 980K HLG . 980M . 982M . 986H . 988H . 988K . 990K . 992K . 993K . 994H . AP-1055D . AP-755 . BG-2455D . BG-260D . C-18 . C-9 . C11 . C13 . C13 XQ350 . C15 . C15 I6 . C175-16 . C175-20 . C18 . C18 I6 . C27 . C32 . C7 . C9 . C9.3 . CW-34 . CX31-C13I . CX31-C15I . CX31-C18I . CX35-C18I . CX35-P800 . D10T2 . D11T . D6R . D6R III . D6T . D6T LGP . D6T LGPPAT . D6T XL . D7E . D7E LGP . D7R XR . D8N . D8R . D8T . D9T . G3304B . G3306B . G3508 . G3508B . G3512 . G3512B . G3516 . G3516B . G3520C . G3520E . IT62H . M325D L MH . M325D MH . PL83 . PL87 . PM-200 . PM-201 . PM3516 . PP3516 . R1600H . RM-300 . RM-500 . TH31-E61 . TH35-C11I . TH35-C13I . TH35-C13T . TH35-C15I . TH35-C15T . TH48-E70 . W345C MH .

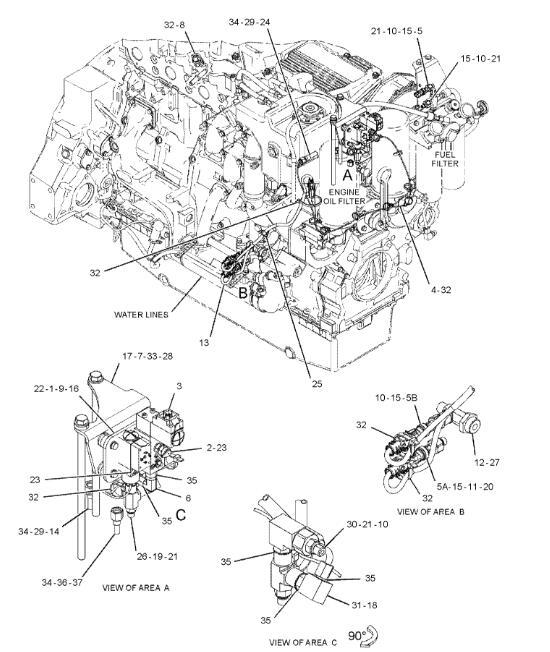

•  parts diagram

1.5S-7349[4] -
BOLT (1/4-20X0.5-IN)
2.264-0564[1] -
CONNECTION GP-TEST .
3.264-1419[1] -
SWITCH-PRESSURE (LOW OIL PRESSURE, SHUTDOWN) .
9T-4057[1] -
SEAL-O-RING .
295-4155 M[2] -
BOLT-SOCKET HEAD (M5X0.8X35-MM) .
4.264-1420[1] -
SWITCH-TEMPERATURE (HIGH WATER TEMP, SHUTDOWN) .
5.274-6719[1] -
SENSOR GP-PRESSURE (FUEL PRESSURE)
5A.274-6719[1] -
SENSOR GP-PRESSURE (OIL PRESSURE)
5B.274-6719[1] -
SENSOR GP-PRESSURE (JACKET WATER PRESSURE)
6.278-4798[1] -
ELBOW .
7.293-8861[2] -
BOLT (1/2-13X11.5-IN) .
8.318-1181 Y[1] -
SENSOR GP-SPEED (MAGNETIC)
9.350-2030[4] -
MOUNT
10.380-1095[4] -
VALVE .
11.380-7360[1] -
VALVE (ISOLATION) .
12.380-7362[1] -
ADAPTER-TEE .
13.380-7363 Y[1] -
HARNESS AS-SENSOR .
14.385-9125[1] -
THERMOWELL .
15.386-6234[4] -
CONNECTOR AS .

(EACH INCLUDES)
214-7566[2] -
SEAL-O-RING
386-6204[1] -
CONNECTOR .
16.420-4381[1] -
BRACKET .
17.420-4382[1] -
BRACKET .
18.420-9237 I[1] -
HOSE AS .
19.214-7566[1] -
SEAL-O-RING
20.214-7567[1] -
SEAL-O-RING
21.214-7568[5] -
SEAL-O-RING
22.8T-4205[4] -
WASHER-HARD (7.2X14.5X2-MM THK)
23.281-0791[4] -
BOLT-SOCKET HEAD (M5X0.8X40-MM)
24.293-9266[1] -
THERMOWELL .
25.316-9351[1] -
MOUNTING-CABLE TIE
26.369-6869[1] -
ADAPTER-TEE .
27.3D-2824[1] -
SEAL-O-RING
28.5P-8245[2] -
WASHER-HARD (13.5X25.5X3-MM THK)
29.6V-6609[2] -
SEAL-O-RING
30.6V-8076[1] -
ELBOW .
31.7J-4026[1] -
ELBOW
32.7K-1181[13] -
STRAP-CABLE
33.9R-7882[1] -
SPACER (14X25X7-MM THK)
34.5P-8937 B-
COMPOUND-JOINT (THERMAL) .
35.237-3860 B-
TAPE (ANTI-SPLASH, 50-MM WIDE) .
36.377-0264[1] -
THERMOWELL .
37.228-7100[1] -
SEAL-O-RING
