161-1704 1611704 C7 C9 Engine Oil Pressure Sensor For 324D Excavator Electric Parts

• 161-1704 C9 C7 Engine Pressure Sensor Applied To Excavator Parts

The pressure sensor could be applied to below models:

120K . 12H . 12K . 140G . 140K . 140K 2 . 140M . 160K . 160M . 2290 . 2390 . 2391 . 2491 . 2590 . 324D . 324D FM . 324D FM LL . 324D L . 324D LN . 325D . 325D FM . 325D FM LL . 325D L . 325D MH . 328D LCR . 329D . 329D L . 329D LN . 330C . 330C FM . 330C L . 330C MH . 330D . 330D FM . 330D L . 330D LN . 330D MH . 336D . 336D L . 336D LN . 3508 . 3508B . 3512B . 3512C . 3516B . 3516C . 511 . 521 . 522 . 525C . 532 . 535C . 541 . 545C . 551 . 552 . 573 . 584 . 627G . 637D . 637E . 637G . 793D . 814F II . 815B . 815F II . 816F II . 950H . 962H . 973C . 973D . 994F . AP-1055D . AP-755 . BG-2455D . BG-260D . C-10 . C-12 . C-15 . C-9 . C18 . C4.4 . C7 . C9 . CPT372 . CX31-C9I . D6R . D6R II . D6R III . D6R STD . D6T . D7R XR . IT62H . M325D L MH . M325D MH . M330D . MTC735 . PM-102 . PM3516 . PP3516 . SBF214 . SUF557 . TH31-E61 . TK711 . TK721 . TK722 . TK732 . TK741 . TK751 . TK752 .

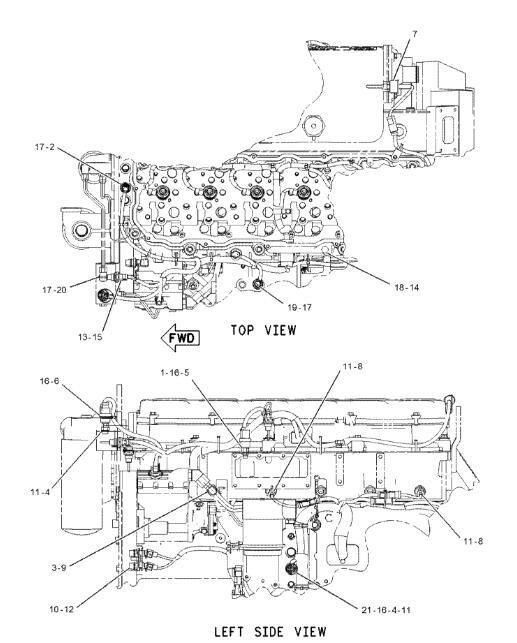

•  parts diagram

1.9X-0262[1] -
ADAPTER
2.130-9811[1] -
SENSOR GP-TEMPERATURE (WATER, COOLANT)
3.137-6667[1] -
SEAL-O-RING
4.9X-0261[2] -
ADAPTER .
5.161-1704[1] -
SENSOR GP-PRESSURE (AIR INLET MANIFOLD)
6.161-1705[1] -
SENSOR AS-PRESSURE (FUEL)
7.165-6634 Y[1] -
SENSOR GP-COOLANT LEVEL (WATER)
8.191-6587 Y[2] -
SENSOR GP-TEMPERATURE (ENGINE OIL) .
9.194-6726 Y[1] -
SENSOR GP-PRESSURE (INJECTION ACTUATION) .
10.117-1385[2] -
SEAL-O-RING
11.153-4906[4] -
SEAL-O-RING
12.169-3300[1] -
SENSOR GP-SPEED (ENGINE TIMING)
13.3E-4352[1] -
WASHER-HARD (8.8X20.5X2.5-MM THK)
14.3J-1907[1] -
SEAL-O-RING
15.6V-3940 M[1] -
BOLT (M8X1.25X25-MM)
16.6V-5048[4] -
SEAL-O-RING
17.8L-2786[3] -
SEAL-O-RING
18.9S-4191[1] -
PLUG
19.130-9811[1] -
SENSOR GP-TEMPERATURE (AIR INLET MANIFOLD)
20.130-9811[1] -
SENSOR GP-TEMPERATURE (FUEL)
21.161-1705[1] -
SENSOR AS-PRESSURE (ENGINE OIL)
