7Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For 330C 330D

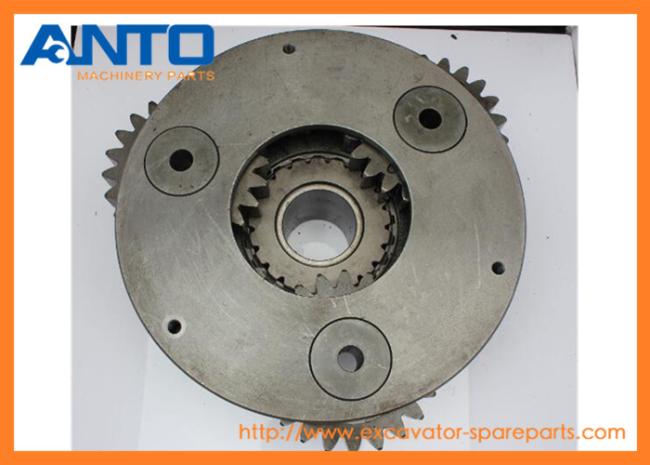

• 7Y-0645 7Y-0731 199-4750 Planetary Carrier AS Used For 330C 330D Excavator Final Drive Parts

• Appliion

EXCAVATOR 328D LCR . 330C . 330C L . 330C MH . 330D . 330D L . 330D LN . 330D MH .
MOBILE HYD POWER UNIT 330D .

• Parts Diagram

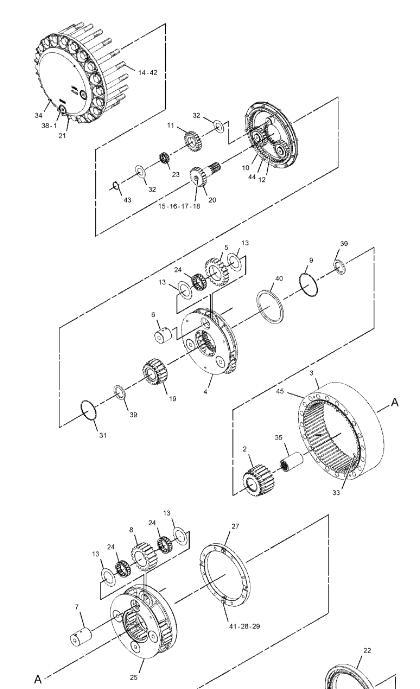

The detailed spare parts drawing as below:

SIS INDIVIDUAL PARTS:

1.3E-2338[2] -
PLUG-PIPE
2.7Y-0639[1] -
GEAR-SUN (21-TEETH)
3.7Y-0642[1] -
GEAR-RING (63-TEETH)
4.7Y-0645[1] -
CARRIER
5.7Y-0659[3] -
GEAR-PLANETARY (22-TEETH)
6.7Y-0661[3] -
SHAFT-PLANETARY
7.7Y-0662[4] -
SHAFT-PLANETARY
8.7Y-0663[4] -
GEAR-PLANETARY (20-TEETH)
9.7Y-0667[1] -
RING-RETAINING
10.7Y-0673[1] -
GEAR-RING (73-TEETH)
11.7Y-0676[3] -
GEAR-PLANETARY (24-TEETH)
12.7Y-0731[1] -
CARRIER AS
7Y-0656[3] -
SHAFT-PLANETARY
13.7Y-1094 M[14] -
WASHER (66X102X1-MM THK)
14.7Y-5235 M[20] -
BOLT (M24X3X190-MM)
15.094-0577[1] -
PLATE (7-MM THK)
16.094-0578[1] -
PLATE (8-MM THK)
17.094-0579[1] -
PLATE (9-MM THK)
18.094-0580[1] -
PLATE (10-MM THK)
19.110-7231[1] -
GEAR-SUN (18-TEETH)
20.191-2521[1] -
GEAR-SUN (23-TEETH)
21.191-2526[1] -
COVER
22.196-4873[2] -
BEARING AS-BALL
23.199-4582[3] -
BEARING AS
24.199-4583[11] -
BEARING AS
25.199-4750[1] -
CARRIER-PLANETARY .
26.213-4737[1] -
SEAL GP-DUO-CONE
27.227-6100[1] -
RETAINER .
28.227-6101[2] -
PLATE-WASHER .
29.227-6102[2] -
DOWEL .
30.227-6197[1] -
HOUSING-MOTOR .
31.093-1731[1] -
RING-RETAINING
32.094-0584[6] -
WASHER (40.3X72X1-MM THK)
33.095-0891[7] -
PIN-SPRING
34.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
35.191-2645[1] -
COUPLING
36.199-4580[1] -
HOUSING .
37.2P-3628[1] -
SEAL-O-RING
38.7M-8485[2] -
SEAL-O-RING
39.7Y-0595[2] -
SPACER (58X79.6X6-MM THK)
40.7Y-0644[1] -
SPACER (163X190X8-MM THK)
41.8T-0293 M[2] -
BOLT (M12X1.75X20-MM)
42.8T-4167[20] -
WASHER-HARD (26X44X4-MM THK)
43.8T-4240[3] -
RING-RETAINING
44.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
45.1U-8846 B-
SEALANT-GASKET

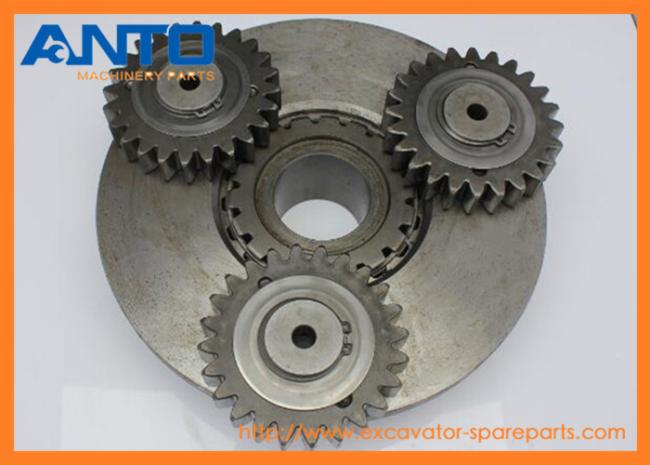

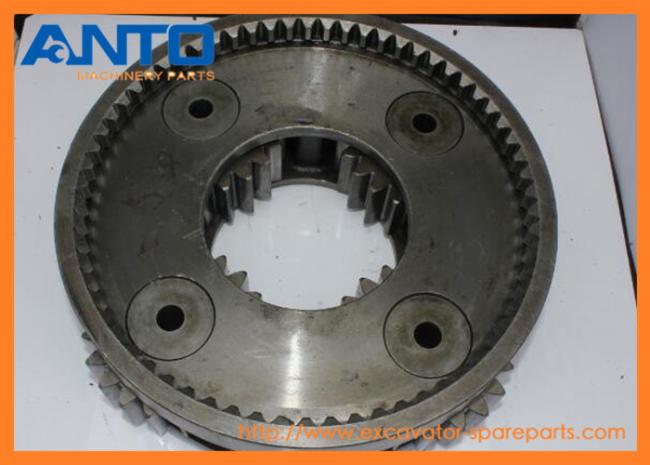

• Product Photos

• Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
