4416605 4463992 Hitachi Excavator Spare Parts Pump Coupling Assy
- 4416605 4463992 Pump Coupling Assy Used For Hitachi Excavator Spare Parts
- Spec Sheet
| Excavator spare parts name | Coupling assy for pump |
| Equipment Model | 4416605 |
| Parts egory | Excavator spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
IZX200 IZX200LC ZR130HC ZR420JC ZR900TS ZX180W ZX180W-AMS ZX200 ZX200-3G ZX200-E ZX200-HHE ZX200-X ZX200LC-HHE ZX210-AMS ZX210-HCME ZX210H ZX210H-3G ZX210K ZX210K-3G ZX210LC-3G ZX210N-AMS ZX210N-HCME ZX210W ZX210W-AMS ZX225US ZX225US-E ZX225US-HCME ZX225USR ZX225USR-E ZX225USR-HCME ZX225USRK ZX230 ZX230-HHE ZX240-3G ZX240-AMS ZX240-HCME ZX240H ZX240K ZX240LC-3G ZX240LC-HHE ZX250-AMS ZX250-HCME ZX250H-3G ZX250K-3G ZX250LC-3G ZX260LCH-3G ZX270 ZX270-HHE ZX280LC-AMS ZX280LC-HCME ZX300W Hitachi

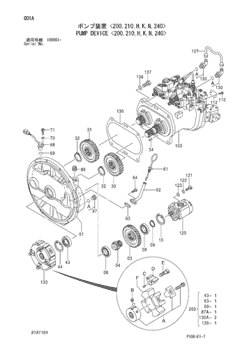

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 9191164 | [1] | PUMP DEVICE | 9195235 | |
| -9195235 | [1] | PUMP DEVICE | ||
| 1 | 1027184 | [1] | CASING;GEAR | |
| 3 | 3063840 | [1] | GEAR;PILOT | |
| 4 | 3055594 | [1] | SHAFT;GEAR | |
| 8 | 958740 | [2] | BRG.;BALL | |
| 9 | 962002 | [1] | RING;RETAINING | |
| 10 | 991725 | [1] | RING;RETAINING | |
| 30 | 3063842 | [1] | GEAR | |
| 31 | 3063843 | [1] | GEAR | |
| 32 | 4274552 | [2] | RING;RETAINING | |
| 34 | 4099290 | [2] | PIN;SPRING | |
| 43 | 4310055 | [1] | SEAL;OIL | |
| 44 | 991725 | [1] | RING;RETAINING | |
| 61 | 4438059 | [1] | GAUGE;LEVEL | |
| 62 | 9743977 | [1] | PIPE | |
| 63 | 9742779 | [1] | PACKING | |
| 64 | M340816 | [2] | BOLT;SOCKET | |
| 68 | 4265372 | [1] | SENSOR;REVOL. | |
| 69 | 4306888 | [1] | O-RING | |
| 70 | A590106 | [1] | WASHER;PLANE | |
| 71 | M340616 | [1] | BOLT;SOCKET | |
| 86 | 4234782 | [1] | PLUG | |
| 87 | 4092534 | [1] | PLUG | |
| 87A. | 4509180 | [1] | O-RING | |
| 103 | [1] | PUMP;UNIT | ||
| 112 | [1] | NAME-PLATE | ||
| 113 | M492564 | [2] | SCREW;DRIVE | |
| 120 | 4276918 | [1] | PUMP;GEAR | |
| 121 | M341030 | [2] | BOLT;SOCKET | |
| 122 | 984054 | [2] | WASHER;SPRING | |
| 123 | 4114402 | [2] | WASHER | |
| 127 | 4369148 | [1] | PIPE;E | |
| 130 | 4293950 | [2] | ELBOW;S | |
| 130A. | 957366 | [1] | O-RING | |
| 133 | 4416605 | [1] | COUPLING | |
| 133A. | 4463992 | [1] | HUB | |
| 133B. | 4334899 | [2] | SCREW;SET | |
| 133C. | 4101345 | [4] | PIN;SPRING | |
| 133D. | 4463993 | [4] | INSERT | |
| 133E. | 4334894 | [4] | BOLT;SOCKET | |
| 133F. | 4463994 | [1] | ELEMENT | |
| 136 | 8058352 | [1] | PACKING | |
| 137 | J901645 | [6] | BOLT | |
| 138 | A590916 | [6] | WASHER;SPRING | |
| 200 | 4451036 | [1] | KIT;SEAL |
- Description
Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
