267-6798 325D 329D Hub Housing For Excavator Final Drive Parts
- 267-6798 325D 329D Hub Housing Used For Excavator Final Drive Parts
- Spec Sheet
| Excavator spare parts name | Hub |
| Equipment Model | 3255 329D |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 320D 320D FM 320D FM RR 323D LN 323D SA 323E L 325C 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
MOBILE HYD POWER UNIT 325D 329D L
UNDERCARRIAGE OEMS

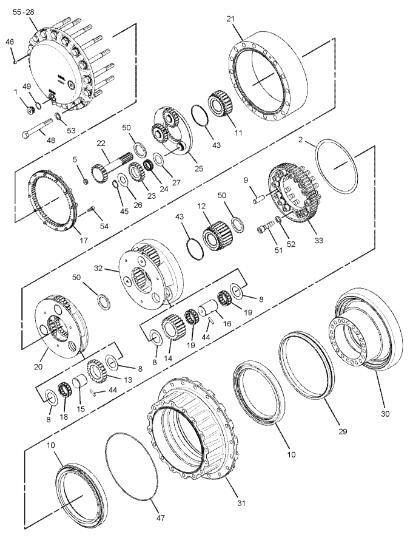

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3E-2338 | [2] | PLUG-PIPE | |
| 2 | 267-6863 BJ | [1] | SHIM (0.75-MM THK) | |
| 7Y-0752 BJ | [1] | SHIM (0.8-MM THK) | ||
| 267-6864 BJ | [1] | SHIM (0.85-MM THK) | ||
| 267-6865 BJ | [1] | SHIM (0.9-MM THK) | ||
| 267-6866 BJ | [1] | SHIM (0.95-MM THK) | ||
| 7Y-0753 BJ | [1] | SHIM (1-MM THK) | ||
| 267-6867 BJ | [1] | SHIM (1.2-MM THK) | ||
| 267-6868 BJ | [1] | SHIM (1.4-MM THK) | ||
| 7Y-0754 BJ | [1] | SHIM (1.6-MM THK) | ||
| 267-6869 BJ | [1] | SHIM (1.8-MM THK) | ||
| 267-6870 BJ | [1] | SHIM (2-MM THK) | ||
| 267-6871 BJ | [1] | SHIM (2.3-MM THK) | ||
| 5 | 094-0578 B | [1] | PLATE (8-MM THK) | |
| 094-0579 B | [1] | PLATE (9-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 8 | 094-1528 M | [12] | WASHER (53X84X1-MM THK) | |
| 9 | 114-1540 J | [4] | PIN-DOWEL | |
| 10 | 168-8452 J | [2] | BALL BEARING | |
| 11 | 169-5589 | [1] | GEAR-SUN (24-TEETH) | |
| 12 | 169-5590 | [1] | GEAR-SUN (24-TEETH) | |
| 13 | 169-5592 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 14 | 169-5593 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 15 | 169-5601 | [3] | SHAFT-PLANETARY | |
| 16 | 169-5602 | [3] | SHAFT-PLANETARY | |
| 17 | 171-9387 | [1] | GEAR-RING (64-TEETH) | |
| 18 | 191-2569 | [3] | BEARING AS (CAGED ROLLER) | |
| 19 | 191-2570 | [6] | BEARING AS (CAGED ROLLER) | |
| 20 | 191-2571 | [1] | CARRIER-PLANETARY | |
| 21 | 191-2676 | [1] | GEAR-RING (72-TEETH) | |
| 22 | 191-2683 | [1] | GEAR-SUN (20-TEETH) | |
| 23 | 191-2684 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 24 | 191-2685 | [3] | BEARING AS | |
| 25 | 191-2686 | [1] | CARRIER AS | |
| 191-2687 | [3] | RACE-BEARING | ||
| 26 | 191-2689 | [3] | WASHER (34X70X1-MM THK) | |
| 27 | 191-2690 | [3] | WASHER (42.3X70X1-MM THK) | |
| 28 | 199-4503 | [1] | COVER | |
| 29 | 207-1571 J | [1] | SEAL GP-DUO-CONE | |
| 214-3570 | [2] | RING-TORIC | ||
| 30 | 267-6797 J | [1] | HOUSING-MOTOR | |
| 31 | 267-6798 J | [1] | HOUSING | |
| 32 | 267-6799 | [1] | CARRIER-PLANETARY | |
| 33 | 267-6800 J | [1] | GEAR-COUPLING | |
| 43 | 093-1731 | [2] | RING-RETAINING | |
| 44 | 095-0891 | [6] | PIN-SPRING | |
| 45 | 096-0433 | [3] | RING-RETAINING | |
| 46 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 47 | 171-9298 | [1] | SEAL-O-RING | |
| 48 | 179-8733 M | [16] | BOLT (M20X2.5X170-MM) | |
| 49 | 7M-8485 | [2] | SEAL-O-RING | |
| 50 | 7Y-0595 | [3] | SPACER (58X79.6X6-MM THK) | |
| 51 | 7Y-5217 JM | [16] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 52 | 8T-3282 J | [16] | WASHER-HARD (22X35X3.5-MM THK) | |
| 53 | 8T-4123 | [16] | WASHER (3.62X5.75X0.375-MM THK) | |
| 54 | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 55 | 1U-8846 B | SEALANT-GASKET | ||
| AVAILABLE REPAIR KIT(S): | ||||
| 267-6818 J | [1] | KIT-FINAL DRIVE BEARING | ||
| B | USE AS REQUIRED | |||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
