222-5917 C7 Engine Fuel Injector Wire Harness 2225917 For Excavator Electric Parts
- 222-5917 C7 Fuel Injector Engine Wire Harness Used For 325D 324D Excavator Parts
- Specifiion
| Excavator spare parts name | C7 ENGINE HARNESS |
| Equipment Model | 325D 324D 329D |
| Parts egory | excavator electronic spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
ASPHALT PAVER AP-1055D AP-755 BG-2455D BG-260D
COLD PLANER PM-102
EXCAVATOR 324D 324D FM 324D FM LL 324D L 324D LN 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN M325D L MH M325D MH
FORWARDER 584
INDUSTRIAL ENGINE C7 C9.3
INTEGRATED TOOLCARRIER IT62H
MARINE ENGINE C7
MOBILE HYD POWER UNIT 324D LN 325D 325D L 329D L
MOTOR GRADER 120K 120K 2 12K 12M 140G 140K 140K 2 140M 160K
PETROLEUM ENGINE C7
SOIL COMPACTOR 815B
TRUCK ENGINE C7
WHEEL FELLER BUNCHER 573
WHEEL LOADER 950H 962H
WHEEL SKIDDER 525C 535C 545C

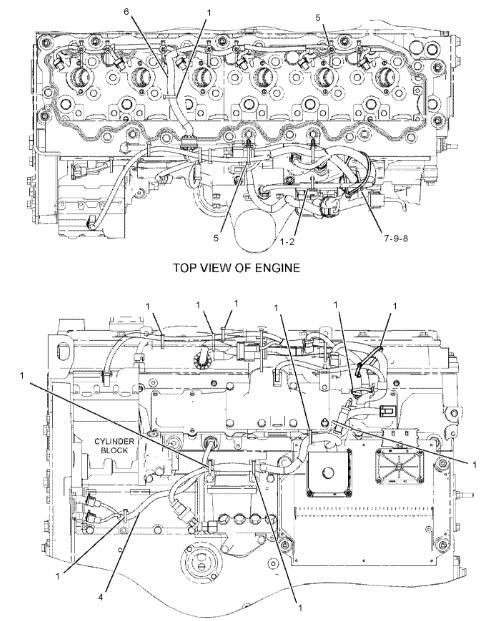

- parts diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [12] | STRAP-CABLE | |
| 2 | 4P-5918 | [1] | CLIP | |
| 4 | 198-2713 | [1] | HARNESS AS-ENGINE (ELECTRONIC CONTROL MODULE) | |
| 305-5362 | [4] | TERMINAL AS (18-GA) | ||
| 180-9340 | [60] | SOCKET-CONNECTOR (14-GA TO 18-GA) | ||
| 9X-3401 | [15] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1767 | [15] | PIN-CONNECTOR (14-GA TO 16-GA) | ||
| 8T-8737 | [77] | PLUG-SEAL | ||
| 119-3662 E | TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM) | |||
| 125-7874 E | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | |||
| 125-7875 E | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | |||
| 264-5732 | [1] | PLUG AS-CONNECTOR (120-PIN) | ||
| 211-6807 | [1] | COVER-CONNECTOR | ||
| 155-2270 | [5] | KIT-CONNECTING PLUG (2-PIN) | ||
| 155-2260 | [3] | KIT-CONNECTING PLUG (3-PIN) | ||
| 155-2265 | [1] | KIT-CONNECTING PLUG (8-PIN) | ||
| (EACH PLUG KIT INCLUDES PLUG AS, & WEDGE) | ||||
| 102-8802 | [1] | KIT-RECEPTACLE (2-PIN) | ||
| 102-8803 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| 102-8801 | [1] | KIT-RECEPTACLE (12-PIN) | ||
| (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 111-2416 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 100-3320 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 5 | 206-1345 | [9] | STRAP-CABLE | |
| 6 | 222-5917 | [1] | HARNESS AS-ENGINE (FUEL INJECTION) | |
| 6N-7523 | [1] | WASHER (6.48X11.9X1.57-MM THK) | ||
| 135-5975 | [1] | GROMMET-WIRING | ||
| 155-2255 | [1] | KIT-CONNECTING PLUG (12-PIN) | ||
| (INCLUDES PLUG AS & WEDGE) | ||||
| 7 | 4P-8134 | [1] | CLIP (LADDER) | |
| 8 | 6V-2317 M | [1] | BOLT (M8X1.25X30-MM) | |
| 9 | 9M-1974 | [1] | WASHER-HARD (8.8X16X2-MM THK) | |
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART |
- Description
Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
