215-3249 2153249 C9 C-9 Engine Fuel Injector Harness For 330D Excavator Electric Parts
- 215-3249 2153249 C9 C-9 Engine Fule Injector Harness Applied To 330D 336D Excavator Parts
- Specifiion
| Excavator spare parts name | engine injector harness |
| Equipment Model | C9 C-9 330D 336D |
| Parts egory | excavator engine parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
CHALLENGER MTC735
EXCAVATOR 330C 330C FM 330C L 330C MH 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 340D L
GENERATOR SET C9
INDUSTRIAL ENGINE C-9 C9
LANDFILL COMPACTOR 816F II
MARINE ENGINE C9
MOBILE HYD POWER UNIT 330C 330D 330D L 336D L
MOTOR GRADER 12H 140M 140M 2 160M
PETROLEUM ENGINE C9
PETROLEUM PACKAGE CX31-C9I
PETROLEUM TRANSMISSION TH31-E61
SOIL COMPACTOR 815F II
TRACK FELLER BUNCHER 2290 2390 2391 2491 2590 511 521 521B 522 522B 532 541 541 2 551 552 552 2 TK711 TK721 TK722 TK732 TK741 TK751 TK752
TRACK LOADER 973C 973D
TRACK-TYPE TRACTOR D6R D6R II D6R III D6R STD D6T D7R XR
TRUCK ENGINE C-9 C9
WHEEL DOZER 814F II
WHEEL SCRAPER 627G 637D 637G
WHEEL TRACTOR
WHEELED EXCAVATOR M330D

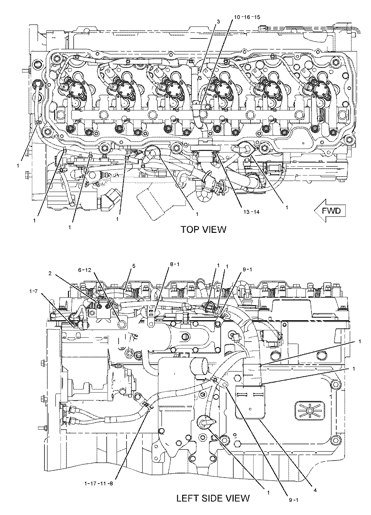

- parts diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 C | [16] | STRAP-CABLE | |
| 2 | 212-7766 Y | [1] | SWITCH GP-MAGNETIC (12-VOLT)(AIR INLET HEATER) | |
| 3 | 215-3249 | [1] | HARNESS AS-ENGINE (UNIT INJECTOR) | |
| 4 | 221-2319 | [1] | HARNESS AS-ENGINE (ELECTRONIC CONTROL) | |
| 102-8802 | [2] | KIT-RECEPTACLE (2-PIN) | ||
| (EACH INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 102-8803 | [3] | KIT-RECEPTACLE (3-PIN) | ||
| (EACH INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 100-3320 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 126-5011 | [1] | SEAL-CONNECTOR | ||
| 111-2416 | [1] | PLUG AS-CONNECTOR (2-PIN) | ||
| 126-5011 | [1] | SEAL-CONNECTOR | ||
| 155-2270 | [4] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS & WEDGE) | ||||
| 160-7690 | [1] | PLUG AS-CONNECTOR (70-PIN) | ||
| 159-9322 | [1] | SEAL-O-RING | ||
| 155-2260 | [5] | KIT-CONNECTING PLUG (3-PIN) | ||
| (EACH INCLUDES PLUG AS & WEDGE) | ||||
| 214-7170 | [1] | KIT-REPAIR (ELECTRICAL CONNECTORS)(ENGINE HARNESS) | ||
| 5 | 236-6234 C | [1] | CABLE AS (2 AWG) | |
| 6V-9023 E | TUBE-HEAT SHRINK (12.7-MM DIA)(6CM) | |||
| 135-2543 | [1] | BOOT (RED)(RED) | ||
| 6 | 3E-4353 | [2] | WASHER-HARD (11X25X3-MM THK) | |
| 7 | 4P-7429 | [1] | CLIP (LADDER) | |
| 8 | 4P-7581 C | [2] | CLIP (LADDER) | |
| 9 | 4P-8134 C | [2] | CLIP (LADDER) | |
| 10 | 6V-4369 | [1] | CLIP | |
| 11 | 6V-5215 M | [1] | BOLT (M8X1.25X16-MM) | |
| 12 | 6V-6317 M | [2] | BOLT (M10X1.5X20-MM) | |
| 13 | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 14 | 8T-0328 | [2] | WASHER-HARD (5.5X10X1-MM THK) | |
| 15 | 8T-4205 | [1] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 16 | 8T-5451 M | [1] | BOLT (M6X1X12-MM) | |
| 17 | 9M-1974 | [1] | WASHER-HARD (8.8X16X2-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- All spare parts are produced as per genuien standard system
- Advantage
2. The parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 6 Months' warranty from the date of arrival. Longer period of 12 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
