Vo-lvo EC210B Excavator Final Drive Planet Carrier Assy VOE14528727 14528727
- VOE14528727 14528727 Planet Carrier Assy Applied To Vo-lvo EC210B Final Drive
- Spec Sheet
| Excavator spare parts name | planet carrier assy no.1 |
| Equipment Model | EC140B EC160B EC180B EC210B EC200B EC220D |
| Parts egory | excavator travel gearbox |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EC140B EC140C EC140D EC140E EC160B EC160C EC160D EC160E EC170D EC180B EC180C EC180D EC180E EC200B EC200D EC210B EC210C EC210D EC220D EC220E FC2121C Vo-lvo.Heavy

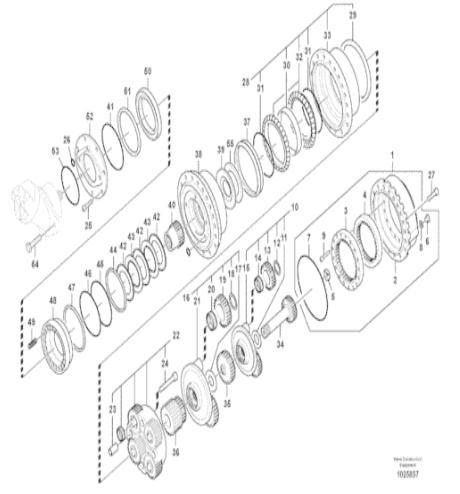

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14528733 | [1] | Travel gearbox | S/N -83936/-51379 | |
| VOE14693056 | [1] | Travel gearbox | S/N 83937-/51380- | |
| 1 | VOE14522475 | [1] | Housing | S/N -83936/-51379 |
| VOE14693058 | [1] | Housing | S/N 83937-/51380- | |
| 2 | SA7117-30110 | [2] | Ball bearing | |
| 3 | VOE14729840 | [1] | Seal | |
| 4 | SA7117-30140 | [1] | Shim | 0,1 Thick |
| SA7117-30150 | [1] | Shim | 0,9 Thick | |
| SA7117-30160 | [1] | Shim | 1,0 Thick | |
| SA7117-30170 | [1] | Shim | 1,2 Thick | |
| 5 | SA7117-30130 | [1] | Retainer | |
| 6 | VOE997446 | [12] | Hexagon screw | |
| 7 | SA9324-21212 | [2] | Pin | |
| 8 | SA7117-30190 | [1] | Ring gear | |
| 9 | SA7117-30180 | [1] | Flexible coupling | |
| 10 | VOE14528723 | [1] | Planet carrier | |
| 11 | SA7117-30210 | [1] | Planet carrier | |
| 12 | SA7117-30240 | [4] | Planetary Gear | |
| 13 | SA7117-30230 | [8] | Needle bearing | |
| 14 | SA7117-30220 | [8] | Thrust washer | |
| 15 | VOE14528724 | [4] | Pin | |
| 16 | SA9325-06012 | [4] | Spring pin | |
| 17 | SA7117-30260 | [1] | Thrust ring | |
| 18 | VOE14528727 | [1] | Planet carrier | |
| 19 | VOE14528728 | [1] | Planet carrier | |
| 20 | SA7117-30290 | [1] | Sun gear | |
| 21 | SA7117-30300 | [1] | Ring | |
| 22 | SA7117-30340 | [3] | Planetary gear | |
| 23 | SA7117-30320 | [3] | Needle bearing | |
| 24 | SA7117-30310 | [6] | Thrust washer | |
| 25 | SA7117-30360 | [3] | Pin | |
| 26 | VOE951955 | [3] | Spring pin | |
| 27 | SA7117-30260 | [1] | Thrust ring | |
| 28 | VOE14602566 | [1] | Cover | |
| 29 | SA7117-15230 | [1] | Pad | |
| 30 | SA7117-30370 | [20] | Hexagon screw | |
| 31 | SA9023-11004 | [2] | Set screw | |
| 32 | VOE14883848 | [0002] | Plug | |
| 33 | SA7117-30330 | [1] | Sun gear | |
| 34 | VOE983524 | [0002] | O-ring | |
| 100 | VOE14526220 | [1] | Overhaul kit |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
