XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For Hyundai R320-7
- XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For HYUNDAI R320-7
- Spec Sheet
| Product name | Planetary carrier assy no.1 |
| Part number | XKAQ-00197 XKAQ-00400 |
| Model | R290-7 R305-7 R320-7 |
| egory group | HYUNDAI Excavator travel reduction gear |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Appliion
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R305LC7 R320LC7 R320LC7A Hyundai
- More carrier for HYUNDAI machine
XKAQ-00485 CARRIER-NO.2
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S
XKAQ-00495 CARRIER ASSY-NO.1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S
XKAQ-00787 CARRIER-NO.1
R250LC7, R250LC7A
39Q8-42190 CARRIER 2
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7
39Q8-42270 CARRIER 1
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7
39Q8-42180 CARRIER ASST KIT 1
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7
39Q8-42260 CARRIER ASST KIT 2
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7
XKAQ-00965 CARRIER 3 ASSY
R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH
XKAQ-00966 CARRIER 3
R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH
39Q8-12201 CARRIER NO.2
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH
39Q8-12281 CARRIER NO.1
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH
39Q8-12190 CARRIER ASSY NO.2
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH
XKAQ-00397 CARRIER-NO.2
R250LC7, R250LC7A, R250LC9, R290LC7, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R320LC9, RD340LC-7
XKAQ-00189 CARRIER-NO.2
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A
XKAQ-00399 CARRIER ASSY-NO.2
R250LC7, R250LC7A, R250LC9, R290LC7, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R320LC9, RD340LC-7
XKAQ-00188 CARRIER ASSY-NO.2
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A
XKAQ-00396 CARRIER-NO.3
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340...
XKAQ-00180 CARRIER-NO.3
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A
XKAQ-00398 CARRIER ASSY-NO.3
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340...
XKAQ-00179 CARRIER ASSY-NO.3
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A
XJCK-00128 CARRIER
R250LC7, R290LC7, R290LC9, R305LC7, R320LC7
XJCK-00146 CARRIER 1
R250LC7, R290LC7, R290LC9, R305LC7
XKAQ-00126 CARRIER 1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S
XKAQ-00121 CARRIER 2
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S
XKAQ-00400 CARRIER ASSY-NO.1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340...
XKAQ-00198 CARRIER-NO.1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC...
XKAH-01421 CARRIER ASSY-NO.1
R250LC9, R250LC9A, R260LC9S, RB260LC9S
XKAH-01285 CARRIER NO1.
R250LC9, R250LC9A, R260LC9S, RB260LC9S
XKAH-01422 CARRIER ASSY-NO.2
R250LC9, R250LC9A, R260LC9S, RB260LC9S
XKAH-01282 CARRIER NO2.
R250LC9, R250LC9A, R260LC9S, RB260LC9S
XJDK-00116 CARRIER 1 KIT
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9
XJDK-00117 CARRIER 2 KIT
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9
XJDK-00054 CARRIER 2 SUB ASSY
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9
XJDH-01189 CARRIER ROLLER ASSY
R28-7, R35-7, R36N-7
XKAQ-00016 CARRIER
R290LC7, R290LC7A, R290LC7H, R300LC7, R305LC7, R320LC7, R320LC7A
XKAQ-00429 CARRIER ASSY-2
R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7,

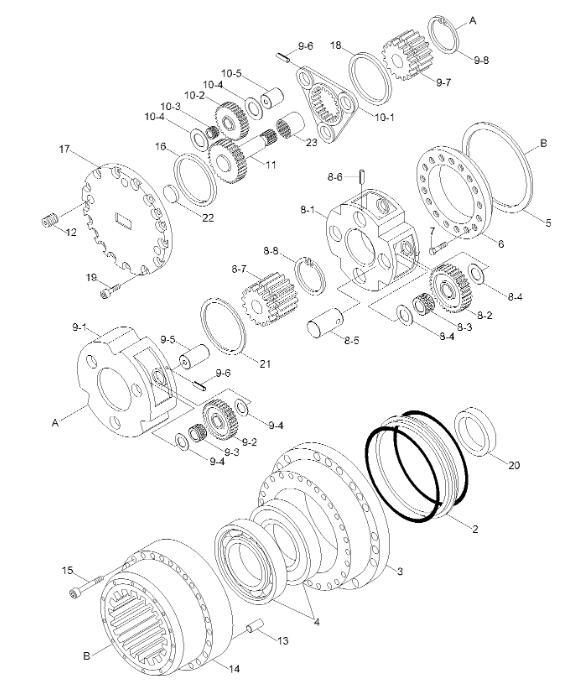

- alog parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 31N8-40070 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40070BG | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071BG | [1] | T/REDUCTION GEAR | |
| 2 | XKAQ-00173 | [1] | SEAL-FLOATING | |
| 3 | XKAQ-00174 | [1] | HOUSING | |
| 4 | XKAQ-00175 | [2] | BEARING-ANGULAR | |
| 4 | XKAQ-00175-AS | [2] | BEARING-ANGULAR | FOR AS ONLY |
| 5 | XKAQ-00176 | [1] | SHIM | STD |
| 5 | XKAQ-00992 | [1] | SHIM | 0.5T |
| 5 | XKAQ-00993 | [1] | SHIM | 0.9T |
| 5 | XKAQ-00994 | [1] | SHIM | 1.0T |
| 5 | XKAQ-00995 | [1] | SHIM | 1.2T |
| 6 | XKAQ-00177 | [1] | RETAINER | |
| 7 | XKAQ-00178 | [17] | BOLT-WRENCH | |
| 8 | XKAQ-00179 | [1] | CARRIER ASSY-NO.3 | |
| 8 | XKAQ-00398 | [1] | CARRIER 3 ASSY | |
| 8-1. | XKAQ-00180 | [1] | CARRIER-NO.3 | |
| 8-1. | XKAQ-00396 | [1] | CARRIER 3 | |
| 8-2. | XKAQ-00181 | [4] | GEAR-PLANETARY NO.3 | |
| 8-2. | XKAQ-00389 | [4] | GEAR 3-PLANETARY | |
| 8-3. | XKAQ-00182 | [72] | NEEDLE-NO.3 | |
| 8-3. | XKAQ-00390 | [72] | NEEDLE 3 | |
| 8-4. | XKAQ-00183 | [8] | WASHER-THRUST NO.3 | |
| 8-4. | XKAQ-00391 | [8] | WASHER 3-THRUST | |
| 8-5. | XKAQ-00184 | [4] | PIN 3 | |
| 8-6. | XKAQ-00185 | [4] | PIN 3-SPRING | |
| 8-7. | XKAQ-00186 | [1] | GEAR 3-SUN | |
| 8-8. | XKAQ-00187 | [1] | RING 3-SNAP | |
| 9 | XKAQ-00188 | [1] | CARRIER ASSY-NO.2 | |
| 9 | XKAQ-00399 | [1] | CARRIER ASSY 2 | |
| 9-1. | XKAQ-00189 | [1] | CARRIER-NO.2 | |
| 9-1. | XKAQ-00397 | [1] | CARRIER 2 | |
| 9-2. | XKAQ-00190 | [3] | GEAR-PLANETARY NO.2 | |
| 9-2. | XKAQ-00392 | [3] | GEAR 2-PLANETERY | |
| 9-3. | XKAQ-00191 | [45] | NEEDLE-NO.2 | |
| 9-3. | XKAQ-00393 | [45] | NEEDLE 2 | |
| 9-4. | XKAQ-00192 | [6] | WASHER-THRUST NO.2 | |
| 9-4. | XKAQ-00394 | [6] | WASHER 2-THRUST | |
| 9-5. | XKAQ-00193 | [3] | PIN 2 | |
| 9-6. | XKAQ-00194 | [6] | PIN 2-SPRING | |
| 9-7. | XKAQ-00195 | [1] | GEAR 2-SUN | |
| 9-8. | XKAQ-00196 | [1] | RING 2-SNAP | |
| 10 | XKAQ-00197 | [1] | CARRIER ASSY-NO.1 | |
| 10 | XKAQ-00400 | [1] | CARRIER 1 ASSY | |
| 10-1. | XKAQ-00198 | [1] | CARRIER 1 | |
| 10-2. | XKAQ-00199 | [3] | GEAR 1-PLANETARY | |
| 10-3. | XKAQ-00200 | [3] | BEARING-NEEDLE | |
| 10-4. | XKAQ-00201 | [6] | WASHER-THRUST NO.1 | |
| 10-4. | XKAQ-00395 | [6] | WASHER 1-THRUST | |
| 10-5. | XKAQ-00202 | [3] | PIN 1 | |
| 11 | XKAQ-00203 | [1] | GEAR 1-SUN | |
| 12 | XKAQ-00204 | [3] | PLUG | |
| 13 | XKAQ-00205 | [4] | PIN-LOCK | |
| 14 | XKAQ-00206 | [1] | GEAR-RING | |
| 15 | XKAQ-00207 | [24] | BOLT-WRENCH | |
| 16 | XKAQ-00208 | [1] | RING-THRUST | |
| 17 | XKAQ-00209 | [1] | COVER | |
| 18 | XKAQ-00210 | [AR] | RING 2-THRUST | |
| 19 | XKAQ-00211 | [16] | BOLT-WRENCH | |
| 20 | XKAQ-00212 | [1] | MOTOR-RING | |
| 21 | XKAQ-00213 | [1] | RING 3-THRUST | |
| 22 | XKAQ-00214 | [1] | PAD | |
| 23 | XKAQ-00215 | [1] | COUPLING | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
