11NA-71001 11NA-73000 11NA-71010 11NA-71041 HYUNDAI Excavator Fuel Filter Assy

• Applicable models

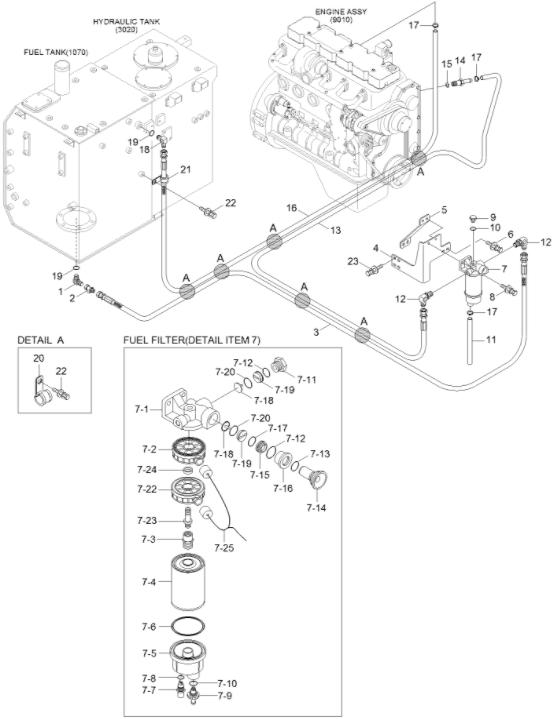

• Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
1	11Q4-50030	[1]	ELBOW-90
2	11Q4-50010	[1]	VALVE-FUEL CUT
3	11Q6-54050	[1]	HOSE-FUEL
4	11Q6-54081	[1]	BRACKET
5	11Q6-54040	[1]	BRACKET
6	S037-102526	[4]	BOLT-W/WASHER
7	11NA-71001	[1]	FUEL FILTER & W/S ASSY	SING F/WARMER
7	11NA-73000	[1]	FUEL FILTER & W/S ASSY	DUAL F/WARMER
7-1.	11NA-71010	[1]	HEAD-FILTER
7-2.	11NA-71020	[1]	HEATER-FUEL
7-3.	11NA-71030	[1]	CONNECTOR
7-4.	11NA-71041	[1]	ELEMENT ASSY
7-5.	11NA-71050	[1]	BOWL-CLEAR
7-6.	11NA-71060	[1]	O-RING
7-7.	11NA-71070	[1]	SENSOR
7-8.	11NA-71080	[1]	O-RING
7-9.	11NA-71090	[1]	VALVE-SCREW
7-10.	11NA-71100	[1]	O-RING
N7-11.	11NA-71110	[1]	PLUG-SCREW
N7-12.	11NA-71120	[2]	O-RING
N7-13.	11NA-71130	[1]	O-RING
N7-14.	11NA-71140	[1]	PUMP-BODY PRIMING
N7-15.	11NA-71150	[1]	PUMP-HEAD
N7-16.	11NA-71160	[1]	HOLDER
N7-17.	11NA-71170	[1]	O-RING
N7-18.	11NA-71180	[2]	PLATE-VALVE
N7-19.	11NA-71190	[2]	FRAME-VALVE
N7-20.	11NA-71200	[2]	O-RING
7-22.	11NA-71020	[1]	HEATER-FUEL	DUAL F/WARMER
7-23.	11Q6-50100	[1]	CONNECTOR	DUAL F/WARMER
7-24.	11Q6-50110	[1]	SPACER	DUAL F/WARMER
7-25.	21Q8-23200	[1]	HARNESS-FUEL WARMER	DUAL F/WARMER
8	S037-103526	[2]	BOLT-W/WASHER
9	P210-101400	[1]	PLUG-HEX
10	Y161-014001	[1]	O-RING
11	11Q6-54070	[1]	HOSE ASSY
12	11N8-50060	[2]	ELBOW-90
13	11N8-57030	[1]	HOSE ASSY-FUEL
14	11ND-40170	[1]	CONNECTOR
15	P392-120000	[1]	WASHER-COPPER
16	11N8-57000	[1]	HOSE ASSY-FUEL
17	S520-015000	[3]	CLAMP-HOSE,S/DRIVE
18	P020-110003	[1]	ELBOW-90
19	S631-018004	[2]	O-RING
20	31L7-10220	[6]	CLAMP-TUBE
21	31L7-10340	[1]	CLAMP-TUBE INS
22	S037-101526	[4]	BOLT-W/WASHER
23	S037-102026	[4]	BOLT-W/WASHER
