206-26-00501 206-26-00500 2062600501 2062600500 KOMATSU PC270-7 Swing Gearbox
- 206-26-00501 206-26-00500 2062600501 2062600500 KOMATSU PC270-7 Swing Gearbox
- Spec Sheet
| Product name | Swing reduction gearbox without motor |
| Part number | 206-26-00501 206-26-00500 2062600501 2062600500 |
| Model | PC270-7 |
| egory group | KOMATSU Excavator Swing Reduction Gearbox |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Appliion
KOMATSU PC270-7 PC290LC-7K

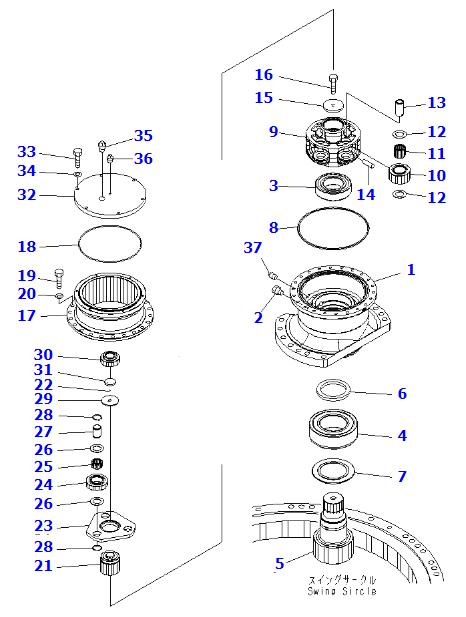

- Parts List Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 206-26-00501 | [1] | SWING MACHINERY A. Komatsu China | ||
| ["SN: 10035-@"] analogs:["RM2062600501", "2062600500"] |1. | ||||
| 206-26-00500 | [1] | SWING MACHINERY A. Komatsu China | ||
| ["SN: 10001-10034"] analogs:["RM2062600500", "2062600501"] |1. | ||||
| 1 | 206-26-71490 | [1] | Komatsu | 105.42 kg. |
| ["SN: 10001-10034"] | ||||
| 2 | 07029-00000 | [1] | VALVE Komatsu | 0.09 kg. |
| ["SN: 10001-10034"] analogs:["6127613890"] | ||||
| 3 | 20Y-26-22330 | [1] | BEARING Komatsu China | 3.28 kg. |
| ["SN: 10001-10034"] analogs:["20Y2622331", "20Y2622430"] | ||||
| 4 | 206-26-71240 | [1] | BEARING Komatsu | 12.83 kg. |
| ["SN: 10001-10034"] | ||||
| 5 | 206-26-72120 | [1] | SHAFT Komatsu China | |
| ["SN: 10001-10034"] | ||||
| 6 | 07012-00115 | [1] | SEAL Komatsu | 0.127 kg. |
| ["SN: 10001-10034"] | ||||
| 7 | 206-26-71310 | [1] | SPACER Komatsu | 0.81 kg. |
| ["SN: 10001-10034"] | ||||
| 8 | 07000-15310 | [1] | O-RING Komatsu China | 0.035 kg. |
| ["SN: 10001-@"] analogs:["0700005310"] | ||||
| 9 | 206-26-71480 | [1] | CARRIER Komatsu | 10.88 kg. |
| ["SN: 10001-@"] | ||||
| 10 | 206-26-71440 | [4] | GEAR Komatsu | 1.91 kg. |
| ["SN: 10001-@"] | ||||
| 11 | 22U-26-21320 | [8] | BEARING Komatsu | 1.1 kg. |
| ["SN: 10001-@"] | ||||
| 12 | 206-26-71520 | [8] | THRUST WASHER Komatsu | 0.1 kg. |
| ["SN: 10001-@"] | ||||
| 13 | 206-26-71510 | [4] | PIN Komatsu | 0.97 kg. |
| ["SN: 10001-@"] | ||||
| 14 | 20Y-26-21330 | [4] | PIN Komatsu China | 0.1 kg. |
| ["SN: 10001-@"] | ||||
| 15 | 20Y-26-21240 | [1] | PLATE Komatsu | 5.1 kg. |
| ["SN: 10001-@"] | ||||
| 16 | 112-32-11211 | [1] | BOLT¤ SHOE Komatsu | 0.09 kg. |
| ["SN: 10001-@"] | ||||
| 17 | 206-26-71452 | [1] | GEAR Komatsu | 28.79 kg. |
| ["SN: 10001-@"] | ||||
| 18 | 20K-22-11190 | [1] | O-RING Komatsu | 0.02 kg. |
| ["SN: 10001-@"] analogs:["20G2211190"] | ||||
| 19 | 01010-81440 | [22] | BOLT Komatsu | 0.073 kg. |
| ["SN: 10001-@"] analogs:["0101061440", "0101031440", "0101051440", "0104031440"] | ||||
| 20 | 01643-31445 | [22] | WASHER Komatsu | 0.019 kg. |
| ["SN: 10001-@"] analogs:["0164301432"] | ||||
| 21 | 206-26-71430 | [1] | GEAR Komatsu | 2.33 kg. |
| ["SN: 10001-@"] | ||||
| 22 | 04260-01270 | [1] | BALL Komatsu OEM | 0.009 kg. |
| ["SN: 10001-@"] | ||||
| 23 | 206-26-71470 | [1] | CARRIER Komatsu | 3.9 kg. |
| ["SN: 10001-@"] | ||||
| 24 | 206-26-71420 | [3] | GEAR Komatsu | 0.83 kg. |
| ["SN: 10001-@"] | ||||
| 25 | 20Y-27-22210 | [3] | BEARING Komatsu China | 0.12 kg. |
| ["SN: 10001-@"] analogs:["20Y2721260"] | ||||
| 26 | 22U-26-21230 | [6] | WASHER Komatsu | 1 kg. |
| ["SN: 10001-@"] | ||||
| 27 | 206-26-71210 | [3] | PIN Komatsu | 0.42 kg. |
| ["SN: 10001-@"] | ||||
| 28 | 04064-03515 | [6] | RING Komatsu | 0.005 kg. |
| ["SN: 10001-@"] | ||||
| 29 | 206-26-71350 | [1] | HOLDER Komatsu | 0.21 kg. |
| ["SN: 10001-@"] | ||||
| 30 | 206-26-71410 | [1] | GEAR Komatsu | 0.83 kg. |
| ["SN: 10001-@"] | ||||
| 31 | 206-26-71340 | [1] | PLATE Komatsu | 0.09 kg. |
| ["SN: 10001-@"] | ||||
| 32 | 20Y-26-31510 | [1] | COVER Komatsu | 7.3 kg. |
| ["SN: 10001-@"] | ||||
| 33 | 01010-81035 | [6] | BOLT Komatsu | 0.033 kg. |
| ["SN: 10001-@"] analogs:["801015556", "01010D1035", "0101051035"] | ||||
| 34 | 01643-51032 | [6] | WASHER Komatsu | 0.17 kg. |
| ["SN: 10001-@"] analogs:["R0164351032"] | ||||
| 35 | 07042-30617 | [1] | PLUG Komatsu China | |
| ["SN: 10001-@"] | ||||
| 36 | 07042-30108 | [1] | PLUG Komatsu | 0.008 kg. |
| ["SN: 10001-@"] analogs:["0704220108"] | ||||
| 37 | 07042-30415 | [1] | PLUG Komatsu | 0.056 kg. |
| ["SN: 10001-@"] |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
