10*7mm MBBR floating carrier fish farming land based aquaculture hdpe environmental material super quality white color

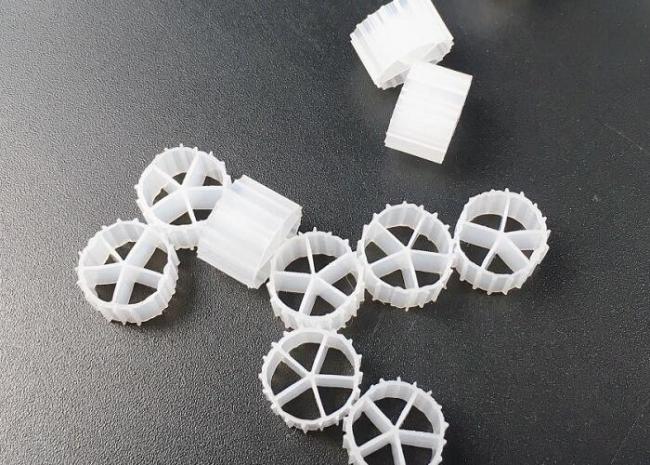

Small boss HDPE bio carrier
Moving Bed Biological Reactor (MBBR) process is the new waste water treatment process,it combined the advantages of traditional Fluid Bed process and Biological Touch-Oxidation process, has good effect on denitrification and dephosphorization, it is widely used in the industrial waste water treatment and municipal waste water treatment.
Applied process and range:
(1) Thermofor biofilm reactor to remove organics and denitrify
(2) Active sludge process
It combines biofilm and activated sludge process in the same treatment unit. it improve the ability to remove BOD/COD and strengthen the function of denitrification and dephosphorization. such process is suitable for the remounlding of activated sludge process, no need of rebuilding.
(3)Preposition denitration.
Technical data sheet:
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >630,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥20 | >830,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥20 | >850,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >260,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥20 | >97,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥20 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥20 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥20 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥20 | >230,000 |
| PE10 | Φ25×4 | >1200 | 5-15 | 500-1400 | <65 | ≥20 | >210,000 |
