Electrical Equipment & Supplies Industrial Controls Transformers
China EE42 230V To 12V 120V AC Hf Transformer For Television for sale

EE42 230V To 12V 120V AC Hf Transformer For Television

Price Negotiable
Price: Negotiation
MOQ: 5000pcs
Delivery Time: 15days
Brand: Ruiyuan
Product Description

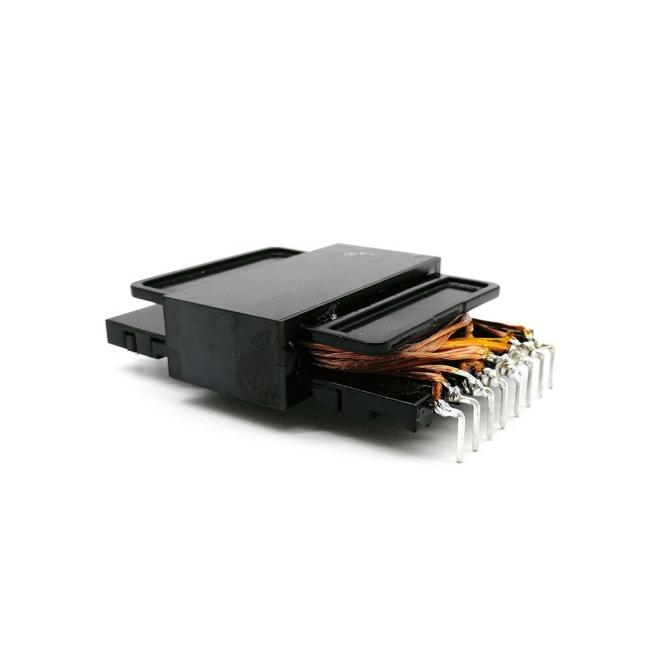

EE 230V To 12V 120V AC High Frequency Transformer Electric Transformer For Television



  • Product name: EE4213 Transformer
  • Components:Ferrite core, wire,Bobbin,Insulations etc
  • Wire:Enameled copper wire,Triple insulated wire etc
  • Shape Types:Vertical,Horizontal,with/without base,Smd etc
  • Working Frequency:1KHz-100MHz
  • Inductance Range:Unlimited
  • DCR Range:Depend on customers' request
  • Storage Temperature:-40℃ to +85℃
  • Working Temperature:-40℃ to +105℃
  • Storage Humidity:30% to 95%







NO.
Application
L(max)
W(max)
H(max)
Pin
Pin pitch
Row pitch
EE13
Flyback transformer
17.5
18.5
16.5
5+2
2.50/3.0
13
EE13
Flyback transformer
15.0
24.0
15.0
5+2
2.75/9.0
17.4
EE16
Flyback transformer
19.0
17.0
24.0
6+4
2.70/3.50
12.2
EE16
Drive transformer
18.0
14.0
18.0
5+5
3.25
10.5
EE16
Flyback transformer
18.0
26.0
19.0
5+2
3.0/4.0
20
EE19
Flyback transformer
21.0
18.0
24.0
6+4
2.70/3.50
12
EE22
Drive transformer
25.5
27.5
18.5
6+6
3.5
17.5
EE22
Flyback transformer
24.0
22.0
18.0
8+8
2.5
16.0
EE22
Flyback transformer
24.0
19.0
26.0
5+5
4
10.3
EE25
Flyback transformer
32.5
23.0
33.5
9+9
3
14
EE25
Flyback transformer
27.0
29.0
23.0
5+5
4
22.5
EE28
Flyback transformer
34.5
24.5
28.0
8+7
3/4/5/6/8
18
EE4213
LLC transformer
55
45
15.0
5+8
4.5
42.5
EE4313
LLC transformer
65.0
39.5
14.0
6+8
6.0/7.5/5.5
60.5
EE4214
LLC transformer
52.0
43.5
15.5
4+8
6.0/8.0/5.0
48.8/52.85
EE4224
LLC transformer
65
45
15.0
5+8
5
57
EE49
LLC transformer
71
52
16.5
6+8
6.0+7.0
65.5
EE53
LLC transformer
77
55
16.5
6+8
5.0+6.0
74.4
EE12
High voltage transformer
14.0
16.5
13.5
6+3
5.0/4.0/4.75
9.4/11.4
EE16
High voltage transformer
17.0
17.0
14.0
4+2
11.43/3.81
12.7
EE19
High voltage transformer
20.0
22.0
15.0
4+2
2.5/10
14.3
EE20
High voltage transformer
22.0
22.0
17.5
7+3
5.3/2.5/8.4
12.8
