Thermal Resistant Copper Clad Polyimide Film ROHS Compliant For LCM TP HDD LED
Price:
Negotiations
MOQ:
Negotiations
Delivery Time:
10~20days
Brand:
JIMA
Product Description
Flexible Copper Clad Polyimide Film Ssed For LCM TP HDD LED for FPC Materials
Halogen-freee 3L-FCCL
Product Features:
1.Outstanding thermal resistance and chemical resistance
2.Fine electrical performance and insulation
3.Good dimensional stability
4.Halogen&antimony free, ROHS compliant
Halogen-freee 3L-FCCL Properties
| Test Item | Unit | SIF0120 | DIF0120 | Test Method | ||
| Peel strength(90°) | kgf/cm | >1.0 | >1.0 | IPC-TM-650 2.4.9 | ||
| Dimensional Stability | Method B | MD/TD | % | ±0.15 | ±0.15 | IPC-TM-650 2.2.4 |
| Method C | MD/TD | ±0.20 | ±0.20 | |||
| Chemical resistance (Dipping/10min) | IPA/NaOH /HCI | % | <6 | <6 | IPC-TM-650 2.3.2 | |
Modulus | GPa | >1.0 | >1.5 | IPC-TM-650 2.4.18 | ||
| Solder | / | 300℃*10S | IPC-TM-650 2.4.13 | |||
| Volume resistivity | 1000V | Ω-cm | >1.0x1014 | IPC-TM-650 2.5.17 | ||
| Surface resistance | Ω | >1.0x1013 | ||||
| Dielectric Constant | 1MHz | / | 3.4～3.8 | IPC-TM-650 2.5.5.3 | ||
| Dissipation Factor | / | 0.020～0.030 | ||||
| glass-transition temperature | AD | 1MHz | ℃ | 60～80 | DMA | |
| Flammability | / | V-0 | UL94 | |||
| Storage | Vacuumed packaging;Relative Temperature:<30℃;Humidity:<70RH%; Storage period:12months | |||||

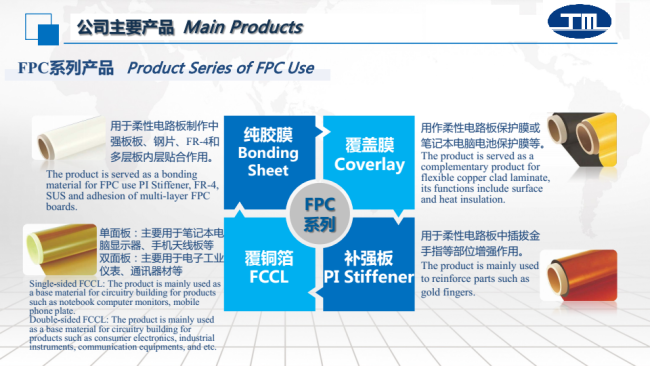

My company produces the following FPC materials, Need to contact us,
look forward to serving you.
Flexible CCL Photos

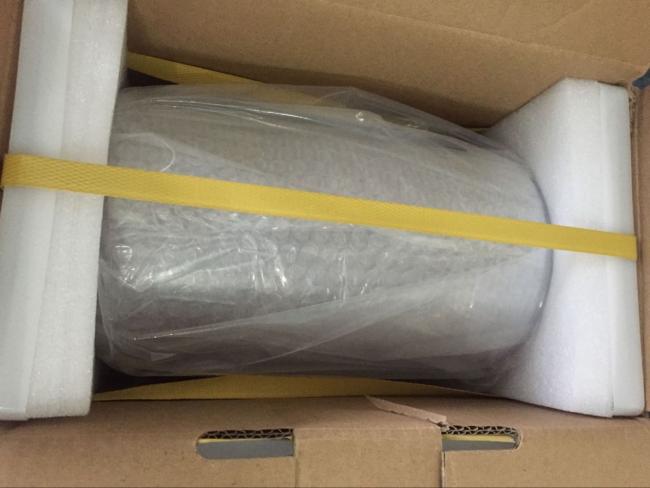

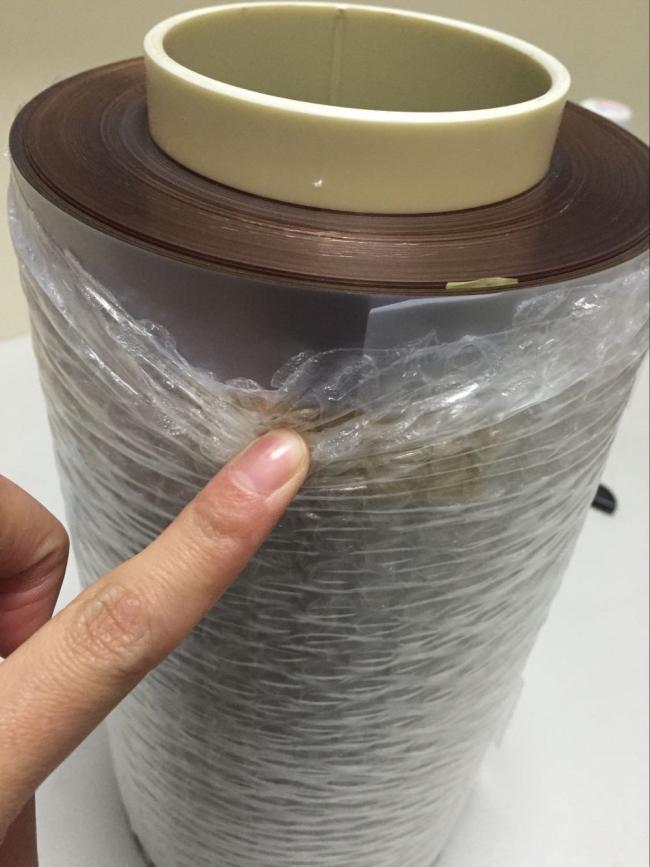

Flexible copper foil (FCCL materials ) Photos
