Combined Walk In Environmental Chamber Climatic Test Chamber

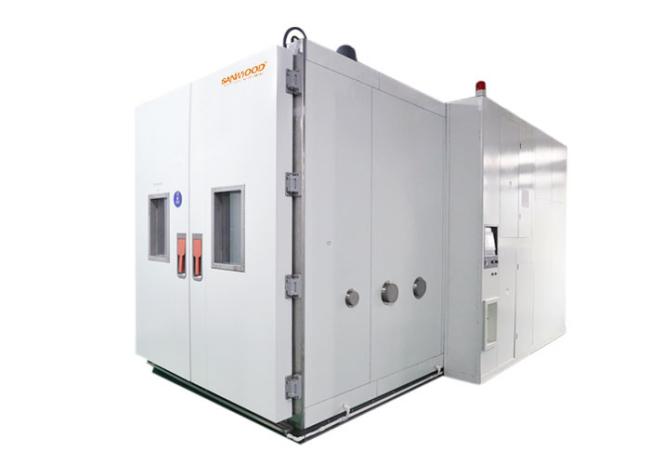

Walk in Environmental Chamber
Combined Temperature Humidity Climatic Test Chamber Cold And Heat Test for Industries
Temperature and Humidity Test Chamber Basic introduction:
Temperature (& Humidity) Test Chamber simulating product under the condition of temperature and humidity combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself have changed.
Six advantages of Sanwood Temperature and Humidity Test Chamber:
1.Temperature and Humidity Chamber Evaporator no frosting under longtime Low temperature and low humidity running.
2.Automatic control system refrigerant demand save electricity above 30%
3.High heat load tested samples test environment
4.realize 95℃ 95%high temperature and high humidity environment.
5.10% 20 ℃ ultra-low temperature range control ability
6.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German multilingual language switching.
Standard Meet and Comply:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
| Model | SMC-1000-CC | SMC-1800-CC | SMC-2520-CC | SMC-3600-CC | SMC-5000-CC | SMC-8000-CC | |
| Temperature | Temperature control range | -70℃～180℃ (A:0℃～180℃;B:-20℃～180℃；C:-40℃～180℃;D:-70℃～180℃) | |||||
| Temperature fluctuation | ±0.5℃ | ||||||
| Cooling rate |
180.0℃～25.0℃ Cooling rate 2.0～3.0℃/min 25.0℃～-40.0℃ Cooling rate 1.0～2.0℃/min -40.0℃～-70.0℃ Cooling rate0.7～1.5℃/min |
||||||
| Heating rate | -70.0℃～180.0℃ Within 60 mins 3.0～5.0℃/min | ||||||
| Temperature uniformity | ±1.5℃ (-40.0℃～100.0℃) | ||||||
| ±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃) | |||||||
| Humidity | Humidity control range | 20.0%RH～98.0%RH | |||||
| Humidity fluctuation | ±1.0% RH | ||||||
| Humidity uniformity | ±2.0％RH | ||||||
| Material / components |
Internal material | Adopts 1.2mm thickness stainess steel(SUS304) | |||||
| External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying | ||||||
| Heat insulating material | 100mm thickness polyurethane plate＋10mm thickness mineral wool | ||||||
| Fan | Centrifugal blower | ||||||
| Compressor | Fully-closed/ Semi-closed |
Semi-closed | Semi-closed | Semi-close | Semi-closed | Semi-closed | |
| Condenser | Air cooling, water cooling |
Air cooling, water cooling |
Water cooling | Water cooling | Water cooling | Water cooling | |
| Refrigerant | R404A,R23,R508 | ||||||
| Evaporator | Fin - and - Tube Heat Exchanger | ||||||
| Heater | Nickel chromium alloy heating wire | ||||||
| Humidifier | Steam humidifier | ||||||
| Size | Interior size(mm)W*H*D | 1000*1000*1000 | 1000*1500*1200 | 1200*1500*1400 | 1200*2000*1500 | 1500*1800*1850 | 2000*2000*2000 |
| Outer size(mm) W*H*D | 1200*1550*2450 | 1200*2000*2650 | 1400*2000*2850 | 1400*2350*2950 | 1700*2150*3300 | 2300*2450*3600 | |
| Volume(L) | 1000L | 1800L | 2520L | 3600L | 5000L | 8000L | |
| Power supply | 380V AC 50/60Hz | ||||||
| Controller | Standard: South Korea TEMI-1500TEMI-2700 | ||||||
