Eco Friendly Shower Solar Water Collector , Heat Pipe Collector OEM Available
Aluminum Alloy Manifold Pressure Passive Heat Pipe Solar Collector Antifreezing for Shower
Specifications:
1. CE,Solar keymark,CCC,ISO,SGS
2. OEM service
3. factory more than 11 years
4. 5 years warranty
Details:
| Brand name | PT |
| Place of origin | Zhejiang,china |
| Type | Vacuum tube |
| Pressure | 0.6MPa |
| Tube | heat pipe |
| Bracket | aluminum alloy/galvanized steel |
| Hail resistance | diameter 25mm |
| Installation | freestanding |
| Certificate | CE,SK(EN12975) |
| CCC, ISO9001 SGS | |
| Number of tubes | 12/15/20/25/30/36 |
| Use | water heater/air conditioning system |
Feature:

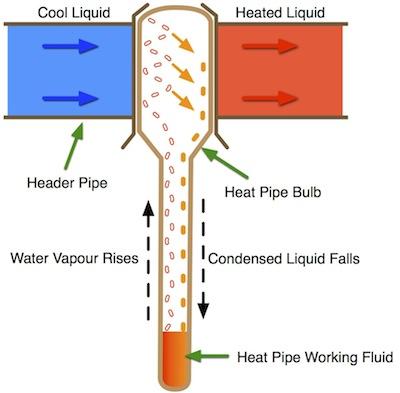

1. Solar radiation is absorbed by the tubes and converted into heat,heat pipes conduct th heat from the copper tube up to the header pipe.
2. Anti-freeze liquid is circulated through the header ,via intermittant pump cycling.
3. There is no water in the tubes ,so the tube will not break in the winter.
4. It can be still operate in the event of occasional tube breakages
5. Water tank do not need be installed above the collector
6. It can be installed both on pitched roof and flat roof
Parameter List
| Model-tubes | Number of tubes | Absorb area |
| PT12-58/1800 | 12 tubes(heat pipe) | 1.56m² |
| PT15-58/1800 | 15 tubes(heat pipe) | 1.95m² |
| PT20-58/1800 | 20 tubes(heat pipe) | 2.60m² |
| PT25-58/1800 | 25 tubes(heat pipe) | 3.25m² |
| PT30-58/1800 | 30 tubes(heat pipe) | 3.90m² |
| PT36-58/1800 | 36tubes(heat pipe) | 4.68m² |
1. Heat is transferred in one-way. Little capacity. The heat pipe starts to work fast at low degree.
2. Thermal conductivity working fluid and metal material commonly used has a good compatibility.
3. The vacuum tube will not burst even the temperature of tube gets 300º C at least, for adopting inorganic element.
The vacuum tube will not frozen even the temperature of tube gets minus 400º C for having good low-temperature-resistance.
4. Heat pipe owns super thermal conductivity with almost no resistance.
Thermal conductivity is more than 7000 times of silver. The power can be 26000kw/m2.
Size & Weight & Load
| PT-12 | PT-15 | PT-18 | PT-20 | PT-25 | PT-30 | ||
| Size (m3) | Manifold & stand | 0.061 | 0.061 | 0.061 | 0.061 | 0.061 | 0.072 |
| Tube | 0.14 | 0.17 | 0.24 | 0.25 | 0.293 | 0.34 | |
| Total volume | 0.201 | 0.231 | 0.301 | 0.311 | 0.354 | 0.412 | |
| Weight(kg) | Manifold & stand | 11 | 14 | 15.5 | 17 | 24 | 31 |
| Tube | 33 | 41 | 48 | 54 | 68 | 82 | |
| Total weight | 44 | 55 | 63.5 | 71 | 92 | 113 | |
| Loading(set) | 20GP | 148 | 128 | 96 | 94 | 79 | 68 |
| 40GP | 297 | 258 | 196 | 191 | 163 | 142 | |
| 40HC | 347 | 302 | 229 | 223 | 192 | 165 |
Warranty & Service
Warranty: 6 years
If some problem happens which is relative to our quality, we are absolutely responsible for it.
Contact with us at anytime, we will solve it in time.
