Laser Welding Flat Plate Solar Collector Thermosyphon OEM / ODM Acceptable
Laser Welding Thermosyphon Blue Tinox Flat Plate Solar Collector With Anodised Aluminium Alloy Bracket
Working Principle
Flat plate solar collector is a metal box with a glass cover on top and a colored absorber plate at the middle.
The sides and bottom of the collector are usually insulated to minimize heat loss.
Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing solar energy into heat energy.
The heat is transferred to liquid passing through pipes attached to the absorber plate.
Liquid medium (mainly including ethylene glycol, preservatives and antifreeze) in the flat plate becomes hot and rising in the top of the water tank, and the cold liquid sink to bottom then be heated by copper core.
So the whole system is always circulating continuously.
Application for Flat Plate Solar Collector

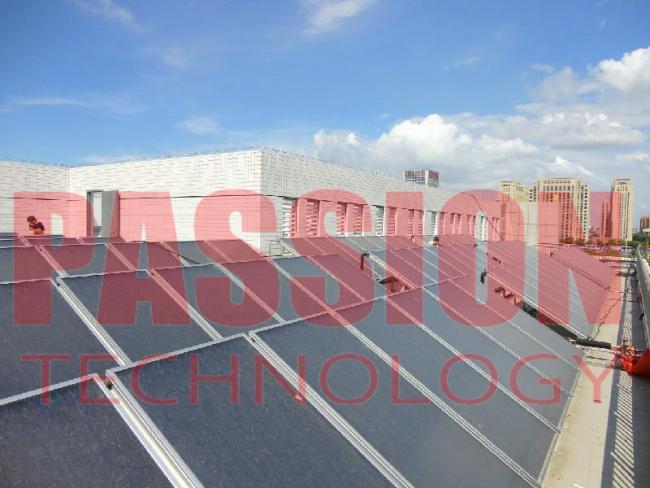

Flat plate solar thermal collector is suitable for residential or commercial solar water heating projects, such as hot water for real estates, hotels, factories, hospitals, schools, swimming pools, space or floor heating, etc.
Features of Flat Plate Solar Collector
1. Most wide-used and practical collector in solar water heating system;
2. Wide applications for water heating, pool heating, space heating;
3. Large solar heating capacity up to 500,000 Liter hot water;
4. Much safe and stable performance with little maintenance;
5. Very efficient direct or indirect solar water heating;
6. Strong adaptability to flat or slope roof installation;
7. Easy installation and connection with simple structure;
8. Super anti-freezing performance with glycol-water mixture;
9. Applicable to passive and active solar water heating system;
10. 10 years project installation experience for consultation.
Blue titanium absorber flat plate solar collector
| Out Shell | Shell Material | 6063-T5 Aluminum Alloy | |
| Thickness | 1.0mm | ||
| Technology | Plastic Spray | ||
| Seal Strip | Material | EPDM | |
| Glass Cover | Material | Low iron matted tempered glass | |
| Transmissivity | ≥92% | ||
| Thickness | 3.2mm | ||
| Insulation Material | Back Side | Material | Glass Fiber + Polyurethane |
| Thickness | 20+25mm | ||
| Round Sides | Material | polyurethane | |
| Thickness | 15mm | ||
| Material of Plate Core | Aluminum plate(0.4mm) | ||
| Welding Technology of Plate Core | Laser Welding | ||
| Material and Specification of Back Plate and Sides | Aluminum Alloy δ≥0.3mm | ||
| Solar Thermal Characteristic | Film | Black Ti Film | |
| Film Technology | Strong Magnetic Voltex High Voltage adsorption | ||
| Absorptance | α=0.95±0.02 | ||
| Emittance | ε=0.05±0.02 | ||
| Physical Characteristic | Dimension(mm) | 2000×1000×130mm | |
| Net weight(kg) | 38 | ||
| Gross weight(kg) | 41 | ||
| Test Pressure | 1.2MPa,10 minutes | ||
| Working Pressure | 0.6MPa | ||
| Inner Plate | Copper Pipe | TP2 Φ22 Copper Pipe | |
| Copper Pipe Specification(mm) | Φ22×0.5 | ||
| Reed Pipes | PERM | ||
| Reed Pipe Specification(mm) | Φ10×0.5 | ||
| Plate Core Dimmension(mm) | 1950×950×0.4mm | ||
| Number of Copper Pipe | 7/8/9 | ||
Our Service:
Professional manufacturer.
Inquiry response: Your inquiries will be replied in 24 hours.
Sample support: Samples are available in 5-7days.
Delivery time: Your shipment will be loaded in 10-15days, depends on quantity.
Payment term: T/T
OEM is welcome.
After-Sale Service:
All Products will have been strictly Quality Checked before packing
All Products will be well packed before shipping
All our products have 3 year warranty.
Packaging & Shipping
Packaging Details: Export strong corrugated carton.
Delivery Detail: Within 7 - 10 days for container order quantity upon confirmed invoice or sales contract.
Warranty:
10 years international responsibility for Flat Plate Panel Solar Collector due to original quality problems.
