LHF Series DC Brushless Surface Solar Pump Hotel Pump Swimming Pool Pump Irrigation Pump

TRADITIONAL BRUSHLESS SOLAR PUMP

1. Can be powered by both solar panel and battery

2. Enviromental protection, clean energy

3. High efficiency permanent magnetic motor, efficiency improved by 20%-40%

4. Over voltage and under voltage protection

5. Over current protection

6. Locked rotor protection

7. Lost phase protection

8. Low water level sensor protection

9. High water level sensor protection

10. Reverse protection

11. MPPT function( maximum power point tracking)

12. Low temperature rise

13. Remote control system (option)

Material Of Pump

◎ Outlet: Iron

◎ Pump head: Iron

◎ Pump body: Iron

◎ Impeller: Brass

◎ Motor: Permanent magnet DC brushless motor

◎ Cable: 1.2M

◎ Air Cooling

◎ MPPT function controller

Model Analysis

◎ Low lift and large flow, fit for irrigation

◎ Warranty: 1 year

Product Features

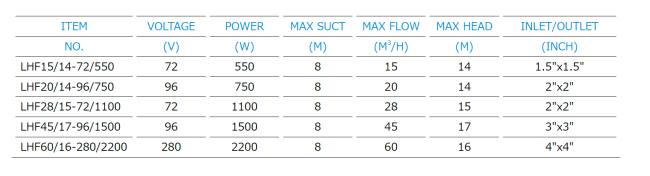

LHF15/14-72/550

LHF: LARENS solar pump HF series

15: Max flow

14: Max head

72: Pump voltage

550: Pump power
