3LIS / 4LIS Lron Series Screw Solar Water Pump For Cattle / Agriculture

3LIS/4LIS lron Series Screw IN-BUILT CONTROLLER Solar Pump Hotel Pump Pool Pump Irrigation Pump Home Pump

IN-BUILT CONTROLLER SOLAR PUMP

1.Easy installation and easy operation, connect with solar panel directly, no need

external controller

2.Can be powered by both solar panel and battery

3.Brushless permanent magnetic motor, controller inside, long working life and

high working efficiency

4.Over voltage and under voltage protection

5.Over current protection

6.Locked rotor protection

7.Lost phase protection

8.Reverse protection

9.MPPT function( maximum power point tracking)

10.Low temperature rise

Material Of Pump

◎ Outlet: Iron

◎ Pump head: Iron

◎ Motor body stainless steel

◎ Impeller: Screw(rubber+iron)

◎ Motor: Permanent magnet DC brushless motor

◎ Cable: 2M

◎ Oil Cooling

◎ MPPT function controller

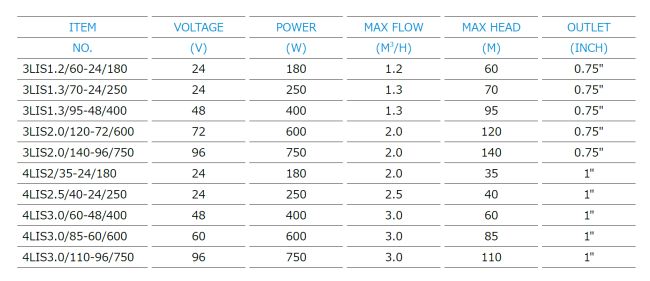

Model Analysis

3LIS1.2/60-24/180

3:3 inch pump body dimension

LIS: LARENS In-Built screw solar pump

1.2: Max flow

60: Max head

24: Pump voltage

180: Pump power

Product Features

◎ Only use it for clean water

◎ High lift but small flow, fit for home use,

drinking water

◎ Small power of solar pump needs less solar

panels

◎ Warranty:1 year
