304 Stainless Steel Submersible Solar Pump DC Farm Irrigation Solar Water Pump

Model Analysis

3PSS4.5/35-48/400

3:3 inch pump body dimension

PSS: Solar pump centrifugal model

4.5: Max flow

35: Max head

48: Pump voltage

400: Pump power

Material Of Pump

◎ Outlet: 201/304 stainless steel

◎ Pump head: 201/304 stainless steel

◎ Pump body: 201/304 stainless steel

◎ Impeller: 201/304 stainless steel

◎ Motor: Permanent magnet dc brushless motor

◎ Cable: 2M

◎ Oil cooling

◎ MPPT function controller

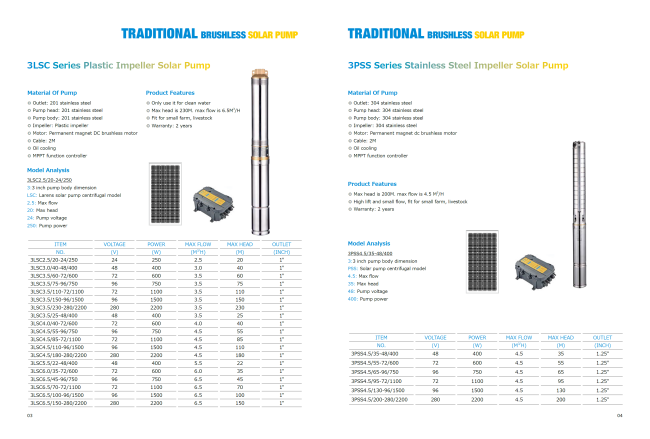

TRADITIONAL BRUSHLESS SOLAR PUMP

1. Can be powered by both solar panel and battery

2. Enviromental protection, clean energy

3. High efficiency permanent magnetic motor, efficiency improved by 20%-40%

4. Over voltage and under voltage protection

5. Over current protection

6. Locked rotor protection

7. Lost phase protection

8. Low water level sensor protection

9. High water level sensor protection

10. Reverse protection

11. MPPT function( maximum power point tracking)

12. Low temperature rise

13. Remote control system (option)

Product Features

◎ Max head is 200M. max flow is 4.5 M3/H

◎ High lift and small flow, fit for small farm, livestock

◎ Warranty: 2 years
