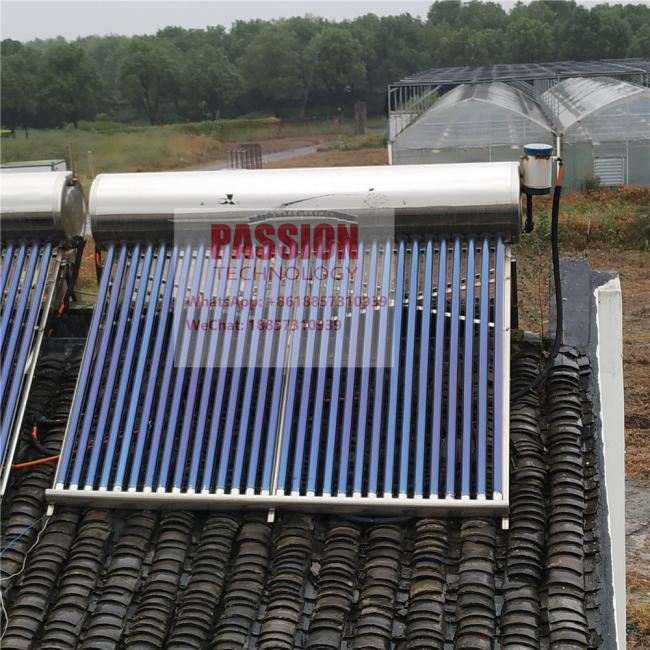

300L Stainless Steel Compact Non Pressurized Vacuum Tube Solar Water Heater For Shower Kitchen

CE approved
5 years guarantee,15 years lifetime.
OEM approved

solar water heater

Working principle:

The series employs the natural convection phenomenon called “thermosyphon”.

The evacuated tubes convert solar energy into heat energy and transfers heat to water.

The lighter hot water in tubes rises to the storage tank, while the cold water at the bottom of the tank flows into the tubes, creating continuous circulation.

The convection flow will continue as long as the sun is heating the collector.

Specification:

1. Inner water tank: SUS304-2B Food Grade stainless steel plate(0.4-0.5mm)

2.Outer shell: Anti-oxidized Galvanized color steel plate(0.4mm)/PVDF coating steel plate(0.4mm)/SUS304-ABstainless steel(0.4mm)

3. Bracket: stainless steel plate(1.0mm)/Aluminum alloy profiled bar (1.5-2.0mm) /Anti-oxidized Galvanized steel plate ( 1.2mm)

4. Tank insulation: Polyurethane integral foaming, 55-60mm thickness

5. Sealed circle: silicon rubber

6. Heat preservation time: 60-72 hours

7. Wind resistance: 30m/s, Hail resistance:25mm

8. Working temperature:-20~250 degree centigrade

9. Maximum pressure: 0.5-0.6 Mpa

10. Usual vacuum tube dimension: D47x1500mm/ D58*1800mm

11. Tube coating: Magnetic-controlled Al-N-Al sputtering all glass evacuated tubes ,Three-target Cu/SS-ALN/ALN vacuum tube, Three-target Cu/Ti-ALN/ALN vacuum tube.

12. Tubes/set: 8/10/12/15/17/18/20/25/30/32/35

13.Dual-purpose bracket for both flat and sloping roof, and with different angle for different countries. Operation and installation documents are free.

Feature:

1. High quality SUS304-2B stainless steel for water tank, processed by argon arc welding technique, under strict quality control system, tank will never rust and leak.

2. High borosilicate all glass vacuum tube has selective absorbing surface, absorptivity above 0.93 and emissivity below 0.05, it enables vacuum tubes to have good absorb and transmit performance.

3. Request for customized type are accepted. Simple structure, Dual-purpose brackets for both flat and inclined roof.

4. To serve Europe, America, Africa clients better, at work-in Europe work time.

5. Feeding water automatically with intelligent controller, and ensure the outlet water with stable temperature.

6. Still in using when the water supplier is cut off.

7. Optional accessories: assistant tank, electric backup heater, intelligent controller, magnesium bar and automatic filling valve. They are optional instead of compulsory, client can choose some or none according to actual need.
