factory direct sale fixed combustible and toxic gas detector KB-501

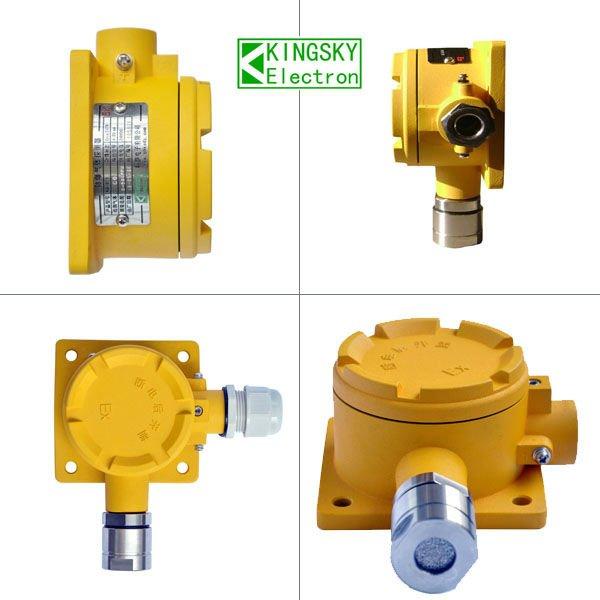

fixed industrial gas detector KB-501
KB-501 fixed gas detector uses high performance gas sensor and sophisticated SMD technology. It has good repeatability,high resistance to humidity-temperature jamming, long working life.
KB-501 can translate the target gas concentration signals into electric current signals or digital signals for outputting and transmitting. It adopted three-wire (4~20mA signals output) and four-wire (RS485 Bus output) system, remotely examine the detection result through the monitor or controller.
Featuresof KB-501
1. Imported Electrochemical sensor;
2. Intrinsically safety circuit design;
3. Three-wire system 4~20mA standard signals output, long distance transmission;
4. RS485 bus output (optional);
5. Possible to connect to DCS system directly;
6. The probe has high sensitivity, quick-response capacity, long working life and short polarization time.

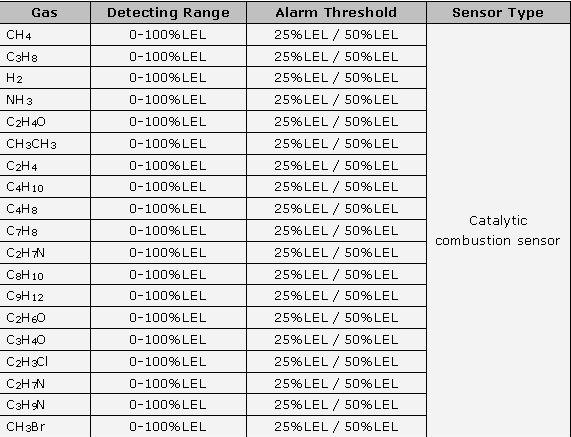

Technical Specifications
| Detectable Gas | C2H2 |
| Detecting Range | 0-100%LEL |
| Alarm Threshold | L:25%LEL, H:50%LEL |
| Sensor Type | catalytic combustion sensor |
| Working Current | ≤50mA |
| Working Voltage | 16~30V DC |
| Output Signals | three-wire system 4~20mA standard signals output; RS485 bus output (optional) |
| Power Consumption | <0.5W |
| Installation Means | Wall mounted |
| Transmission Distance | ≤1000m |
| Explosion-proof Type | Explosion insulating |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP65 |
| Operating Environment | Temperature: -25°C~50°C Humidity:≤95%RH (non-condensing) |
| Remarks: The detecting range and alarm threshold values can be adjusted according to customer’s request. |
|

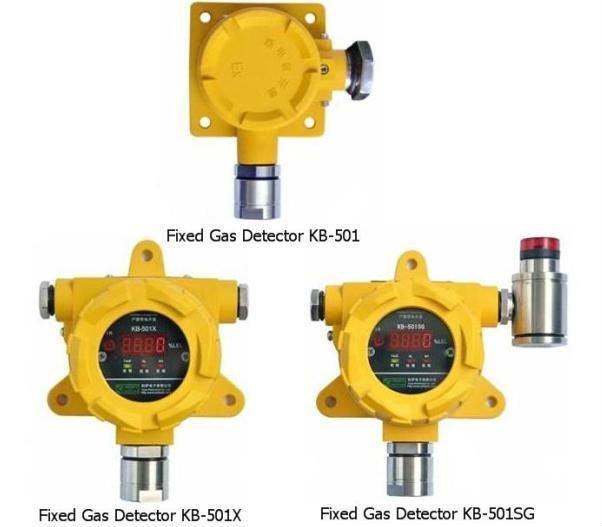

Models in the same seriesinclude:
KB-501, KB-501X, KB-501SG. They could all detect Combustible or Toxic or Oxygen gas.
