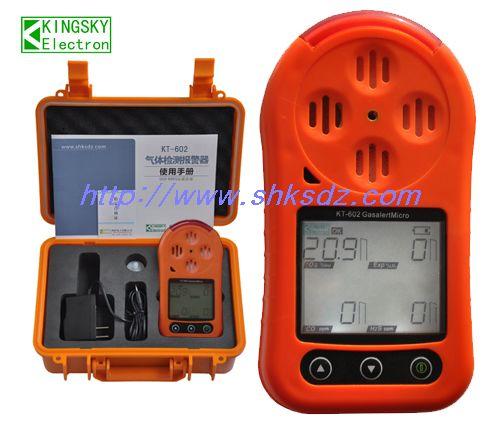

factory direct sale portable multi gas detector(Ex,Co,H2s,O2) KT-602
KT-602 is a compact portable gas detector with a large LCD. It can monitor CO, H2S, O2 and combustible gas simultaneously. The instrument features two instant alarms with audio/visual and vibratory indicators, rechargeable battery, and simple use. This small belt-clip-style instrument weighs about 211 grams. KT-602 is designed to be intrinsically safe.
Features
1. High sensitivity and high accuracy
2. Continuously gas concentration and composition LCD real-time display
3. audible visual vibration alarms
4. Two-stage(Low/High) alarm threshold can be changed based on customer's request.
5. Simple calibration
6. Fully functional self-testing
7. Password protection capability: only the authorized user can modify the preset parameter.
Technical specifications of KT-6024 in 1 multiple gas detector alarm
| Operating & Storage Environment | Temperature: -20°C~55°C (-4F~122F) Humidity: 5%-95% (Relative humidity non-condensing) Pressure: 95~110kPa |
| Alarm Threshold (Two-stage) | There may be regional variations, users can set up the value based on practical situation. |
| Detecting Range | Combustible gas: 0~100%LEL (Low/High Alarm Point: 25% LEL/50%LEL) O2: 0~30% VOL (Low/High Alarm Point: 18.5% VOL/23.5%VOL) CO: 0~500 PPM (Low/High Alarm Point: 35 PPM/70 PPM) H2S:0~100 PPM (Low/High Alarm Point: 10 PPM/20 PPM) Other gas types: referring to the gas parameter list below |
| Four Transducers | Combustible gas: catalytic combustion sensor O2 / H2S / CO: electrochemical sensor |
| Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm |
| Acoustic Alarm | Variable-frequency pulse alarm which can reach volume of 95dB in a distance of 1 foot (0.3 meter) |
| Visual Alarm | Two red LED omnibearing visible glitter alarm |
| Vibration Alarm | Pulsant signals alert the gas alarm or any other alarm status |
| Display | Alphanumeric large LCD screen displays the real time gas concentration and alarm stage |
| Backlight | Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down. |
| Self-checking Function | Self-checking after start up. |
| Calibration Function | Automatic zero point calibration; Automatic measurement range calibration. |
| Power Supply | Rechargeable lithium battery |
| Weight | 211g |
| Dimensions | 126mmx66mmx33mm |
