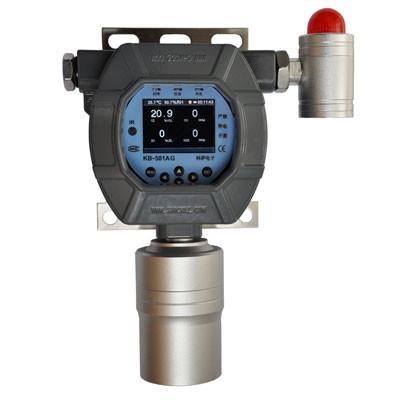

Online multi-Gas Detector KB-501AG
Gas detector KB-501AG is a new type of multi-gas detector which used advanced electrochemical sensor,catalytic combustion sensor,infrared sensor and microcontroller, employed sophisticated SMD technology. It has following advantages: good repeatability,high resistance to humidity-temperature jamming, long performance life and simple operation. It is applied to inspection for gas concentration in industrial environments.
KB-501AG can translate the appointed gas concentration signals into digital signals display. Three-wire system 4~20mA electric current signals output, with long-distance transmission and high anti-interference capacity. In addition, it has two-stage alarm function with acoustic and light signals.
Common applications is gas safety inspection and alert for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, etc.
Features
l Cast aluminum housing;
l Imported sensor;
l Intrinsically safety circuit design;
l High brightness LED digital display, clear and direct;
l Timely alert with acoustic and light alarm signals;
l Three-wire system 4~20mA standard signals output and four -wire RS485
l Possible to connect to DCS system directly;
l The probe has following advantages: high sensitivity, quick-response capacity, long performance life and short polarization time.
l With a manual controller (optional units) used for adjustment of parameter;
l Function of infrared remote control operation (remote-control is optional units).
Technical Specifications
| Applicable Gas |
CO: 0~500 PPM H2s :0~100 PPM O 2 : 0~30.0%vol Ex(CH 4 ): 0~100%LEL Other gas types: referring to the gas parameter list |
| Detecting Range | Refer to the gas parameter list |
| Alarm Threshold | Refer to the gas parameter list |
| Working Environment |
Temperature: -20~55℃ Humidity: ≤95%RH (non-condensing) |
| Working Current | ≤50mA |
| Working Voltage | 16~30V DC |
| Power Consumption | ＜3W |
| Display | High brightness LED digital display |
| Output Signals | Three-wire system 4~20mA standard signals output and four -wire RS485 |
| Alarm Signal | Acoustic and visual signals alert |
| Installation Means | Wall mounted |
| Transmission Distance | ≤1000m |
| Explosion-proof Type | Explosion insulating |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP65 |
Gas Parameter list
| Applicable gas | Detecting Range |
Alarm Threshold (Two-stage) Low / High |
| NH3 (Ammonia) | 0-100 PPM | 25 PPM / 50 PPM |
| Cl2 (Chlorine) | 0-50 PPM | 0.5 PPM / 1.0 PPM |
| CH4O(methyl alcohol) | 0-100PPM | Depending on customer’s request |
| H2 (Hydrogen) | 0-1000 PPM | 50 PPM / 100 PPM |
| CH20 (Formaldehyde) | 0-10 PPM | Depending on customer’s request |
| H2S (Hydrogen Sulfide) | 0-100 PPM | 10 PPM / 20 PPM |
| HCl (Chlorine Hydride) | 0-30 PPM | 5 PPM / 10 PPM |
| O3(ozone) | 0-20ppm | 3.0 PPM / 5.0 PPM |
| HCN (Hydrocyanic Acid) | 0-50 PPM | 5 PPM / 10 PPM |
| PH3 (Phosphine) | 0-20 PPM | 0.3 PPM / 0.6 PPM |
| HF (Fluorine Hydride) | 0-10 PPM | 3 PPM / 10 PPM |
| AsH3 (Arsine) | 0-1 PPM | Depending on customer’s request |
| CO (Carbon Monoxide) | 0-500 PPM & 2000 PPM | 35 PPM / 70 PPM |
| S02 (Sulfur Dioxide) | 0-20 PPM | 2 PPM / 4 PPM |
| ClO2 (Chlorine Dioxide) | 0-50 PPM | 0.3 PPM / 0.5 PPM |
| NO2 (Nitrogen Dioxide) | 0-20 PPM | 1.0 PPM / 2.0 PPM |
| CO2(infrared sensor) | 0-20%VOL or 0-5000ppm | 1.0%VOL/3.0%VOL 800ppm/1500ppm |
| C2H4O (Ethylene Oxide) | 0-100 PPM | 1 PPM / 10 PPM |
| NO (Nitrogen Monoxide) | 0-250 PPM | 25 PPM / 50 PPM |
Combustible Gas Parameter List
| Gas | Detecting Range | Alarm Threshold | Sensor Type |
| CH4 | 0-100%LEL | 25%LEL / 50%LEL | Catalytic combustion sensor |
| C3H8 | 0-100%LEL | 25%LEL / 50%LEL | |
| H2 | 0-100%LEL | 25%LEL / 50%LEL | |
| NH3 | 0-100%LEL | 25%LEL / 50%LEL | |
| CH4O | 0-100%LEL | 25%LEL / 50%LEL | |
| CH3CH3 | 0-100%LEL | 25%LEL / 50%LEL | |
| C2H4 | 0-100%LEL | 25%LEL / 50%LEL | |
| C4H10 | 0-100%LEL | 25%LEL / 50%LEL | |
| C4H8 | 0-100%LEL | 25%LEL / 50%LEL | |
| C7H8 | 0-100%LEL | 25%LEL / 50%LEL | |
| C2H7N | 0-100%LEL | 25%LEL / 50%LEL | |
| C8H10 | 0-100%LEL | 25%LEL / 50%LEL | |
| C9H12 | 0-100%LEL | 25%LEL / 50%LEL | |
| C2H6O | 0-100%LEL | 25%LEL / 50%LEL | |
| C3H4O | 0-100%LEL | 25%LEL / 50%LEL | |
| C2H3Cl | 0-100%LEL | 25%LEL / 50%LEL | |
| C2H7N | 0-100%LEL | 25%LEL / 50%LEL | |
| C3H9N | 0-100%LEL | 25%LEL / 50%LEL | |
| CH3Br | 0-100%LEL | 25%LEL / 50%LEL |
Remark: The alarm threshold value can be adjusted based on customer’s request.
Some gas types are not listed. If any request, please contact the manufacturer.
