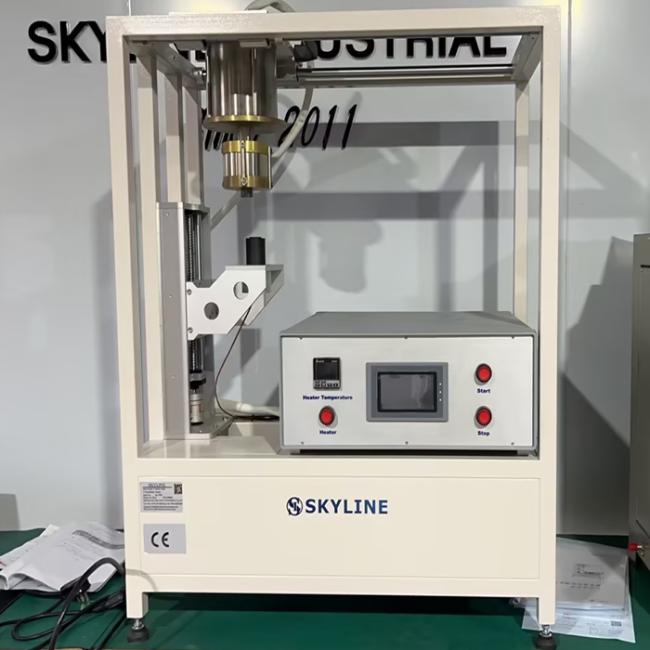

EN 702IZE Fire Testing Equipment Contact Heat Transimmision Test Apparatus

Product Introduction

This Contact Heat Transfer Tester is designed according to EN702 standard,and it can meet requirements of Chinese standard AQ6103-2007 Protective gloves for welders.The test results includes contact temperature,time of starting test,threshold time etc.

Test Method

under set contact temperature,the measuring protective fabric contacts heating column while bearing 49N pressure,the time of temperature raising 10ºC from initial temperature is threshold time,which is used to evaluate thermal protective property.

Features

1. Contact Heat Transfer Tester adopts high temperature resisting metal heating element,contact diameter is ¢25.2±0.05 mm.

2. Heating temperature range is ambient~500ºC,the HMI can show it directly.

3. Contact area of calorimeter is ¢25±0.05×D5±0.02mm,measuring range is not less than 500ºC.

4. Contact force:49N,contact speed:5mm/s,calorimeter is controlled by Servo motor,which is automatic up and down.All test process are automatically controlled by program.

5. The platform of heating element can be moved horizontally,which is easy for put sample and make sure the operator's safety.

6. LCD display,PLC automatically records start time,threshold time,end temperature of threshold time,real-time temperature.

Main Components of Contact Heat Transfer Tester

Installation requirement

Electrical:230 volts Nominal 10 Amps
Ambient Temperature:Operating 25±5℃

Gas Supplies:Propane and air compressed air

What is Contact Heat Transmission Tester?

Contact heat transmission tester is professional designed to determine the contact heat transmission of protective clothing, hand protectors and the constituent materials intended to protect against high contact temperatures. The tester is made up of heating cylinder, specimen holding frame and calorimeter.
