Fire Fighting Equipment LT-BAT door opening tools forced entry tool door entry tools

Overview

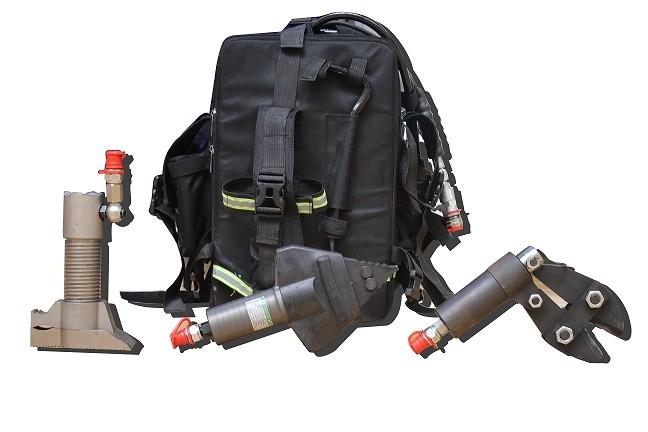

LT-BAT Electric Forcible Entry Kit is a set of ultra high pressure multi functional electric tool kit. It compose of a micro cutter, micro spreader, electric pump, door opener, crowbars.

Application scope

The counter-terrorism department's sudden and emergency rescue is especially suitable for high rescue and field operations.

Features

1. the main components use aerial aluminum alloy, with high strength and light weight.

2. use high capacity battery to achieve long duration

3. multiple circuits and mechanical protection measures to ensure the safety of tools and operators.

4. portable backpack carry in operation, use imported CEJN flat interface, fast plug in&out.

Technical parameters

1.Electric hydraulic pump:Rated working pressure 630Bar;High pressure flow:0.4L/min;Low pressure flow: 1.0L/min;Conversion pressure 5-10MPa;Hydraulic oil capacity 0.2L;Motor power 550W;Motor speed 2500mp/min;Rated voltage 24V;Battery capacity 5AH;

2.micro spreader:Rated working pressure 630Bar;

Opening distance ≥150mm;Separation force:42KN.

3. crowbars:Length:320mm;Weight:0.5kg

4.door opener:Rated working pressure 630Bar;Closed length 205mm.Opening distance:152mm;Separation distance :230mm;Support distance :300mm;Opening force :67KN

5.micro cutter:The maximum opening distance≤ 35mm;Rated working pressure 630Bar ;Maximum shearing force 115KN;Maximum shear capacity φ18mm
