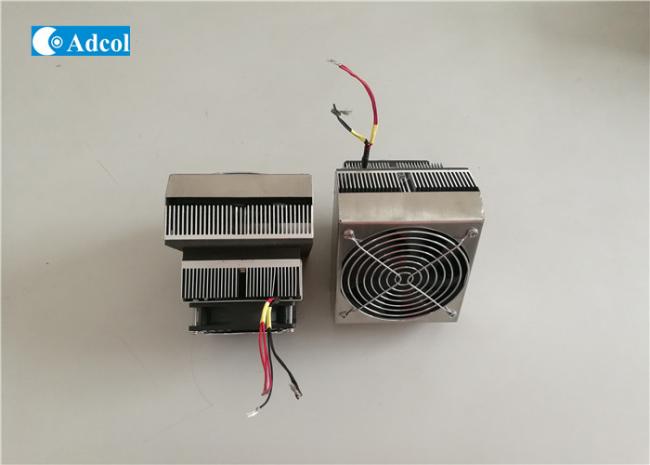

Wine Cellar Cooling Unit Thermoelectric Peltier Conditioner Assembly
The ATA050-12 or 24VDC Thermoelectric air to air TEC conditioner is designed for electronic cabinets and environmental chambers. It can cool to 67 degree below ambient or maintain ambient temperatures while removing up to 50W. This model is available in 12VDC and 24VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.
Wiring Schematic (Power Connector)
| Position | Description |
| 1 | TEC + |
| 2 | TEC - |
| 3 | FAN + |
| 4 | FAN - |
1 – Specifiction:
| Model: | ATA050-12VDC |
| Description | Air to Air cooling System |
| Capacity- Qmax | 50 Watts |
| Input Voltage | 12 VDC |
| Working. Ambient Temp. | 0~60˚C |
| TEM Current (Running) | 8.1 amps |
| TEM Current (Start) | 9.1amps |
| Hot Side Fans Current | 0.4 amps |
| Cold Side Fans Current | 0.3 amps |
| Weight | Est. 1.8 kg |
| Rating Maintained | NEMA 12 |
| Overall Dimensions | 160mm x 123mm x 133mm |

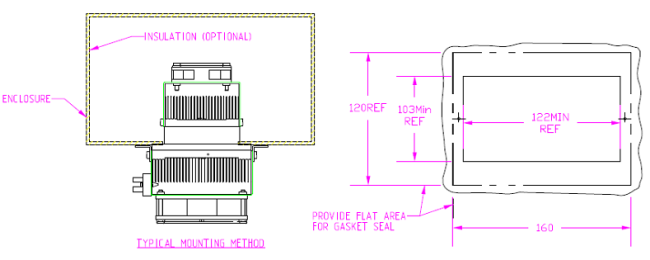

2 - Installation Method and Cutout Dimension (in mm)

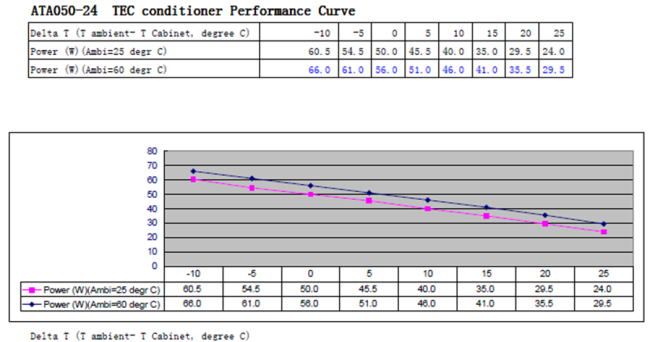

3 – Pormance Curve
