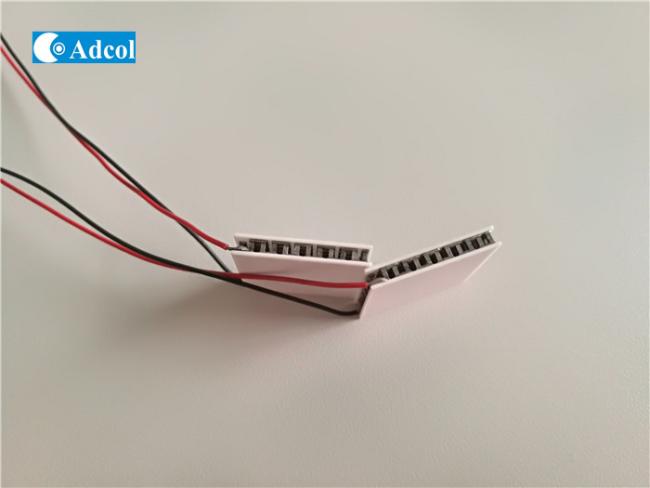

0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance
0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance
Thermoelectric power generating module (TEG) is one kind of power generating device which uses
the Seebeck Effect to convert heat source into electricity directly. It has the characteristics of compact structure, reliable performance, maintenance-free, working without noise, low-carbon and green. The heat source of TEG is extremely extensive. It will generate DC electricity continuously as long as there is temperature difference between both sides of module. Besides thermoelectric material, the factor which affects the generating capacity and conversion efficiency of TEG is the temperature difference. The larger temperature difference, the more generating capacity and higher conversion efficiency will be obtained.
We are specialists in cooling system design
We offer flexible and friendly service throughout both planning and delivery.
Components are widely used in refrigeration temperature of the military medical and laboratory equipment consumer products and industrial areas.
| Part Number | TEG1-127-1.0-1.5-250 |
| Hot side Temperature (Degree C) | 250 |
| Cold Side Temperature (Degree C) | 30 |
| Voltage open circuit (Volts) | 10.0 |
| Matched load resistance (Ohm) | 6.6 |
| Matched load output Voltage (Volts) | 5.0 |
| Matched load output Current (Amps) | 0.8 |
| Matched load output power (Watt) | 3.8 |
| Heat flow across the module (Watt) | 76 |
| Heat flow Density (Wcm2) | 8.4 |
| AC resistance (Ohm) under 27 degree C | 4.1 |
Mechanical Dimension & Construction
Performance Curve
