7 Kw Power Ridge Cap Roll Forming Machine 0.3 - 0.80 Mm Steel Plate Thickness

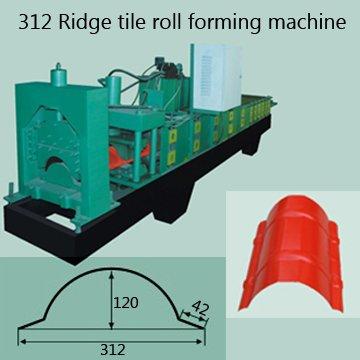

312 Automatic Galvanized Ridge cap zinc roofing sheet roll Forming Machine
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
| Types of ridge cap roll forming machine |
Type312 |
Type240 |
Type343 |
Type381 |
Type433 |
|
Sample |
|
|
|
 |
|
| Roller stations | 15 | 15 | 13 | 13 | 13 |
| Thickness | 0.3-0.8mm | 0.3-0.8mm | 0.3-0.8mm | 0.3-0.8mm | 0.3-0.8mm |
| Cutting type | Pillar guide | Pillar guide | Pillar guide | Pillar guide | Pillar guide |
| Shaft type | solid | solid | solid | solid | solid |
| Roller processing |
Quenching, chroming |
Quenching, chroming |
Quenching, chroming |
Quenching, chroming |
Quenching, chroming |
| PLC | Delta | Delta | Delta | Delta | Delta |
| Computer screen | Touch screen | Touch screen | Touch screen | Touch screen | Touch screen |
| Main motor | 4KW | 4KW | 4KW | 4KW | 4KW |
| Hydraulic motor | 3KW | 3KW | 3KW | 3KW | 3KW |
| Board thickness | 18mm | 18mm | 18mm | 18mm | 18mm |
| Machine frame | 300 H steel | 300 H steel | 300 H steel | 300 H steel | 300 H steel |
| Chain size | 1 inch | 1 inch | 1 inch | 1 inch | 1 inch |
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
Cangzhou Kingter roll forming machinery CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1996. We have 4 factories working in Beijing, Tianjin and Hebei province. Here are more than 400 workers to serve you. We are ready to provide quality products and excellent service to our customers with our company motto "Quality first and nothing but credit".
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station
(1hour), then we can pick up you to factory(40min).
Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west
station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 12 mounts, all technicals are ready to serve you at any time.
