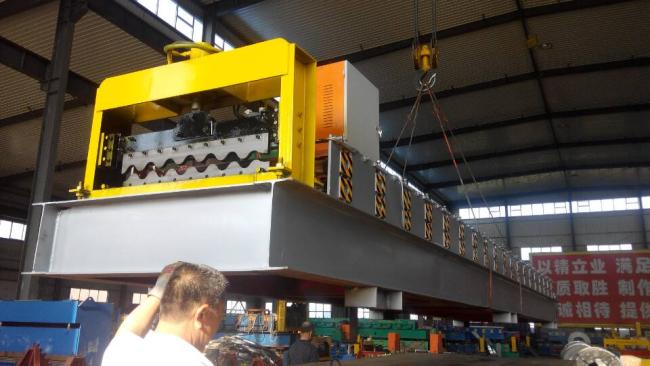

1250 MM Feeding Width Metal Roof Roll Forming Machine 1.5 Inch Chain Drive
Price:
negotiated
MOQ:
1 SET
Delivery Time:
within30 days after receiving deposit
Product Description
1250MM Feeding Width Metal Roof Roll Forming Machine 1.5 Inch Chain Drive
Specification:
| No. | main parameter of roll forming machine | |
| 1 | Suitable to process: | Color steel plate |
| 2 | Width of the plate: | 1000mm |
| 3 | Pass: | 14passes |
| 4 | Frame: | 300mm H steel |
| 5 | Middle plate: | 14mm |
| 6 | Roller material: | 45# steel |
| 7 | Diameter of the roller: | 75mm |
| 8 | ChainChain wheel: | 1inch |
| 9 | Power: | 4 4kw |
| 10 | Thickness of the plate: | 0.3-1mm |
| 11 | Productivity: | 8-12m/min |
| 12 | Dimension: | 8*1..35*1.25m |
| 13 | Total weight: | about 4T |
| 14 | Control system: | PLC control |
| 15 | Used | Small Span Roof |
| NO | Name | Unit | Qty |
| 1 | Man-made decoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
|
Terms |
|
| Payment type | 35% T/T prepaid and balance should be paid before loading |
| Delivery time | 30days after receving advance payment |
| Guarantee period | 18monthes free service/ pay service all the machine life |
| Installation and training | If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. |
