Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet
Working flow
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |

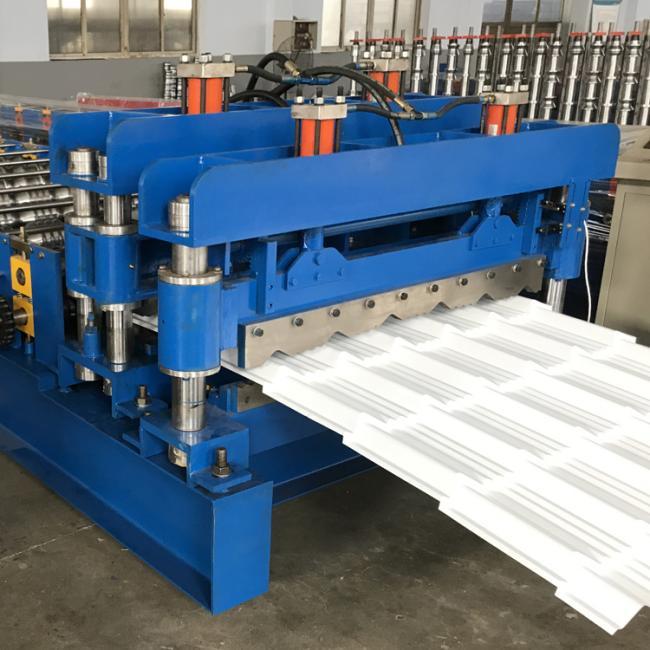

roll forming
(1) Suitable material: color steel
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 1250/1000mm
(4)Width of the plate after forming: 1035/828mm
(5) Productivity :4-6m/min
(6) Roller steps :11rows
(7) Roller material: 45# steel Rolling chromium thickness:0.05 mm
(8) Diameter of active shaft: 70mm
(9) Wall thickness of the main forming machine:16mm steel plate
(10) Main forming machine body : 360mmH steel
(11) Transmission chain is1’’
Reducer is 5.5kw which works stably and no noise
(12) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 4kw,
no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:4600mm*850mm*800mm
Pressing and cutting device
| Type | bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual | Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
5. After-sale service:
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
