HMI 15.6 inch All In One Touchscreen with J1900, industrial control IPC
HMI 15.6 inch All In One Touchscreen with J1900, industrial control IPC
Product Specification:
1. Technical index of Display
| Index | Parameter | |
| Panel | Screen Size | 15.6 inch |
| Panel type | LCD | |
| Interface | Dual LVDS 8bit | |
| Backlight type | WLED | |
| Display area size | 376.32 (H) x301.056 (V) mm | |
| Appearance size | 565*352*64.1mm | |
| Resolution | 1366 x768★ | |
| Pixel spacing | 0.248mm×0.248 ★ | |
| Dynamic contrast | 500:1 ★ | |
| Brightness | 400cd/m2 ★ | |
| Display scale | 16:9 | |
| Visual angle | View Angle Free(R/L 178(Typ.),U/D 178(Typ.)) | |
| Response time | 6ms(Try,on/off) | |
- Technology index of touch control device
| Index | Parameter | |
| Function index | Touch panel size | 15.6 inch matches with display device ★5:4 |
| Touch method | 10 points capacitive touch | |
| Thickness of cover glass | 3mm | |
| Total thickness | 4.3±0.3 | |
| Resolution | ≥4096×4096 ★ | |
| Response speed | 10ms | |
| Reported rate | 100HZ | |
| Mechanical function | Input method | Hand writing or capacitive pen |
| Touch times | Durable single-point≥50 million times | |
| The smallest diameter of touch object | 8mm | |
| Explosion-proof |
227g±2g, 100cm, No damage after the impact at the central area for once. ★ |
|
| Surface Durability | Surface hardness equals glass, Moh's hardness level≥7 | |
| Optical index | Transmittance | ≥85% |
| working environment | -20-60℃,20-85RH | |
| Electrical characteristics | Working voltage | Typical value+5VDC,Allowance range+4.75v~+5.25v |
| Power supply | USB bus | |
| Interface | USB | |
| Control driver | IC solution | ILI2302M |
- Drive display indicators [drive board indicators]
| Index | Parameter | |
| OSD LANGUAGE | Simplified Chinese, English, Frech, Italian, Russian, Spanish, German, Portuguese | |
| TO PANEL | Interface | Dual LVDS (8bit) |
| Max Resolution | 1920×1200 | |
| Panel voltage | 5V | |
| Backlight voltage | 12V | |
| Luminance regulation | 1-100 Grade | |
| VIDEO INPUT | PC-RGB | Up to 1920×1200@60Hz |
| DVI | 480p, 576p, 720p, 1080i, 1080p | |
| HDMI | 480p, 576p, 720p, 1080i, 1080p | |
| POWER | Requirement | 12V DC |
| Management | Standby Power Consumption < 0.5W(Board Only) | |
| NO. | Description | |
| 1 | DC IN | |
| 2 | HDMI IN | |
| 3 | DVI IN | |
| 4 | VGA IN | |
| 5 | Touch screen USB | |
| Button | POWER AUTO VOL+ VOL- MENU | |
- Technical index of power supply
| Index | Parameter | |
| DC input parameter | Voltage range | 9V-36V |
| Standbay current | 2.5W | |
| Maximum current | 23W | |
| Power supply certification | Safety standards | UL60950-1,IEC60950,EN60950-1,GB4943 |
| EMC standard | EMC--- EN55022/EN55024/GB9254(CISPR 22) /GB17625.1 | |
| EMI standard | FCC Part 15B | |
| efficiency | Full load output≥90% | |
| Total power | Support maximum output power | 60W |
5. Appearance technical indicators
| Index | Parameters |
| Total Weight | 4.5 kg |
| shell material | High quality cold rolled sheet metal profile |
| Shell process | The outer shell of the shell is cold rolled plate or aluminum profile, the metal baking paint and the inside of the machine are galvanized anti-rust, shockproof, anti-magnetic, anti-interference, anti-static, complete insulation protection |
| Machine appearance | Integrated industrial design, ergonomic and aesthetic principles, ultra-thin cabinet, rich time breath |

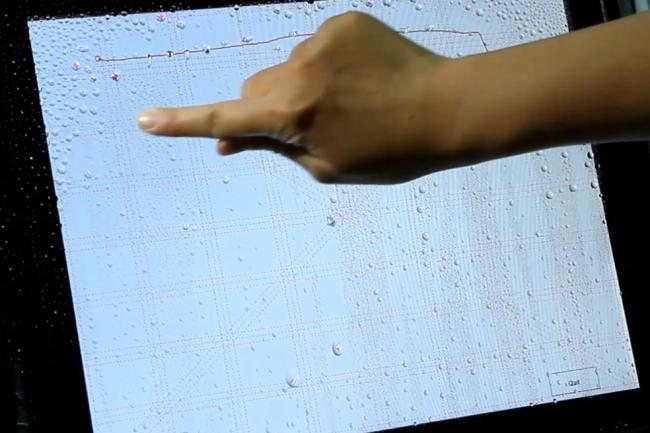

Projected Capacitive Touch panel:
- Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
- There is no air gap between layers like in a resistive touch panel.
- The patterns on the two parallel ITO layers form a grid of capacitors.
- The electric fields of these capacitors are projected through the top layer of glass.
- When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
- This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
- An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.
FAQ:
Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 65”, the bigger size are researching and developing.
Application:
-- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc
-- Advertising player -- Education Whiteboard -- Medical device
-- Industrial PC panel -- Multi-touch table -- POS
-- Restaurant menu -- ATM
