Automatic Moving Vehicle Rail For Low Voltage Assembly Line Cart
Automatic Moving Vehicle Rail For Low Voltage Assembly Line cart
Product Introduction
BDG series rail powered transfer vehicle get its power from railway. The 380V alternating-current is transformed into safe current 36V. The current collectors mounted on trolley get the 36V current from the railway and transmit it into electronic box and thus to make the car start, stop, move forward and move backward. Combined with PLC system, full automatic operation is available. It's widely used, life long, safe and flexible.
Application Site
Steel Mill & Coil Plant
The rail push transfer car can be applied in steel mill to handling steel pipes and coils and it can lift up or put down the coils freely with hydraulic lifting table. And the V- frame can be added on the deck to prevent the coils falling down. To ensure safety, the rail push transfer cart can be operated by the wireless control. We can make a suitable V-frame to you according to the coil dimension, coil weight, etc.
Warehouse & Logistics
The rail push transfer cart can be used to transfer heavy material from one warehouse to another or from warehouse to factory. For example, it can transfer paper coils in paper mill and transfer large package to another place. Due to it can travel in all kinds of rails with automatically operate, it can greatly improve the working efficiency.
Petroleum industry
With influence of the length on oil pump and sucker rods, the table size of the rail push transfer cart is large than common cart. With box girder structure, it cannot deformation with large load capacity. It can applied in all kinds of conditions, and mainly used to transfer oil pump, parts and finished products between workshops.
Advantage
Maybe you will have a consideration before buying a car, I recommend you our products to you strongly for the following reasons:
Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Technical Parameters
| BDGZ SERIES TRANSFER CART TECHNIAL PARAMETER TABLE | |||||
| Model | BDGZ-2t | BDGZ-16t | BDGZ-30t | BDGZ-50t | |
| Rated Load(t) | 2 | 16 | 30 | 50 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 4500 | 5500 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | |
| Height(H) | 450 | 500 | 600 | 650 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4200 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | |
| Wheel Diameter(mm) | 270 | 350 | 400 | 500 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2 | 3.5 | 5 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 20 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 50 | |
| Max Wheel Load(KN) | 14.4 | 64.5 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.5 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |

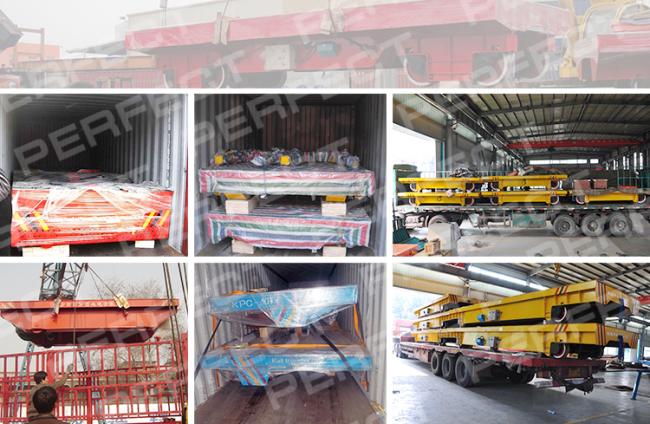

Packing & Shipping
The length of the transfer car is less than 6m while the width is less than 2.2m it will be transported by 20ft container.
If the length of the transfer car is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length of the transfer car is less than 12m, the width is beyond 2.2m. It needs to be transfer by flat rack (20 or 40 ft). If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Why Choose Us?
The load bearing safety factor of the rail push transfer cart is no less than 120%.
The auxiliary device or foundation drawing is designed for free and we offer the technical service
16 hours engineering service and 24 hours internet service
During the warranty period, if our rail push transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours
Solving the quality problem within 24 hours, serious attitude from beginning to end.
