Battery Operated Industrial Transfer Trolley 20m/Min Motorized Cable Drum Steel

Price Negotiable
Price: $6000-$7500
MOQ: 1 Set
Delivery Time: 5-8 work days
Brand: Perfte
Product Description

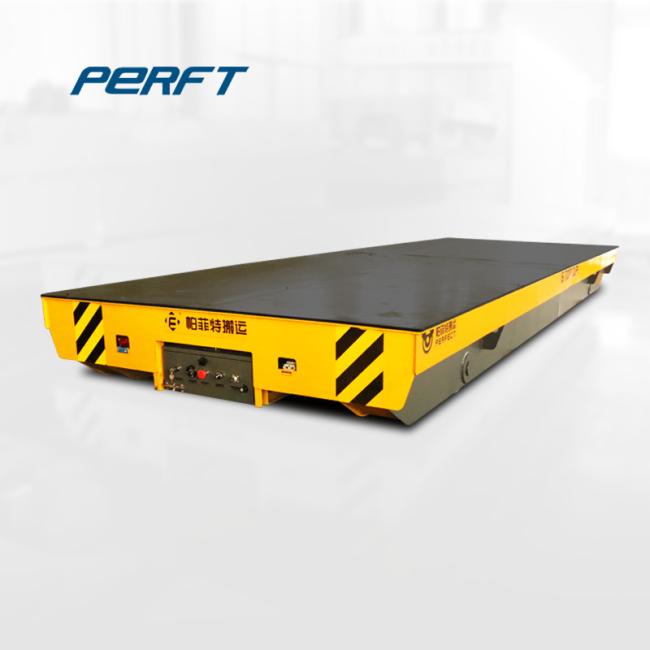

   Battery Operated Warehouse Industrial Transfer Trolley Motorized Cable Drum Steel Cart




Product Description

Our coil transfer cart are used to transport steel coils and pipes for the metal industry.
This coil transfer Cars are designed to be an extremely cost-effective, safe and flexible load moving alternative. Our coil transfer carts are specially designed for coil, pipe and other round material transportation.
There are mounted V-shape and Roller on coil transfer cart to protect the coil stable, roller distance can be adjusted as per coil diameter, V-shape supporting and roller can also be removable from the cart for other cargo transport.
The coil transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and products through manufacturing facilities.
when the goods are loaded, we can make sure the cart moves safely and the goods are in a very safe condition.




Parameter
Model BXC-2T BXC-5T BXC-10T BXC-16T BXC-20T BXC-30T BXC-50T BXC-63T
Rated Load(T) 2 5 10 16 20 30 50 63
Table Size(mm) 2000*1500 3500*2000 3600*2000 4000*2000 4000*2200 4500*2200 5500*2500 5600*2500
Height of Trailer (mm) 450 500 500 550 550 600 650 700
Wheel Quantity 4 4 4 4 4 4 4 4
Tire Specification 254*102 305*165 559*254

559*356 22*9-10

22*9-10

22*10-16

22*14-16

Tire Material Polyurethane Solid Wheel, Press-on Solid Tire

Battery Voltag 24 36 48 48 48 48 48 48
Color Customized
Speed(km/h) 0-20 0-20 0-20 0-20 0-15 0-15 0-15 0-10


    Advantages

  • Can running indoor or outdoor, on rail or cement floor;
  • Suitable for short distance, high frequency, long time, uninterrupted working environment;
  • Anti-explosion, anti-high temperature, apply to various occasions;
  • No strict requirement for the construction of the railway;
  • No limit of running hours safe and convenient operation;
  • Price is low, the structure is simple easy to maintain;
  • Long service life and excellent performance in workshops;
  • Equipped with hydraulic lift system for more purpose;

      Our servise

  • Our commitment:
  • The load bearing safety factor of the Handling Vehicle is no less than 120%;
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material;
  • 16 hours engineering service and 24 hours internet service for our customers;
  • During the warranty period, if our Coil transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours;
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;
