Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling
Steel Industry Heavy Loads Supply Transfer Vehicles Used In Shipyard Handling
product presentation

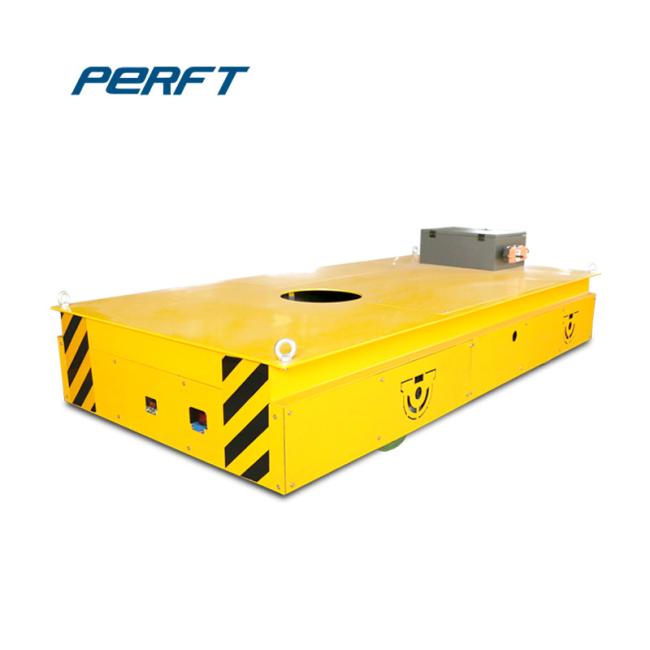

Transfer carts are movable platforms used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, transfer carts are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.
Characters
--The Heavy Loads Transfer Carriage can be used to transfer any industrial cargo or factory heavy equipment, such as steel coils, steel pipes, ladle or billets, roller, pallet, prefabricated concrete, cement packets, etc.
--The Heavy Loads Transfer Carriage can be used in painting room, melt shop, storage warehouse, foundry plant, shipyard, 5S workshop, agriculture, etc.
--All of our Heavy Loads Transfer Carriage are equipped with such safety device: Alarm lights, buffer, emergency stop buttons and radar sensor.
--The Heavy Loads Transfer Carriage is designed depend on the working condition. You can add special function, such as lifting table, high temperature resistance, anti-explosion, etc.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Our after-serive
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
