Electric Battery Powered Metal Transfer Cart Industry
Price:
USD 2000~7800 set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
electric battery powered trackless utility vehicles
Product Description
Electric Battery Powered Metal Industry Use Battery Powered China made
Description of Transport Carts
PERFECT rail transfer trolleys are used to transport steel coils and pipes, die, machine parts, paper products for manufacturing industry. This rail transfer trolleys are designed to be an extremely cost effective, safe and flexible load moving alternative.
The rail transfer trolleys are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The coil heavy load transfer cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.
The rail transfer trolleys are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The coil heavy load transfer cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.
applications
Uses of rail transfer trolley:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

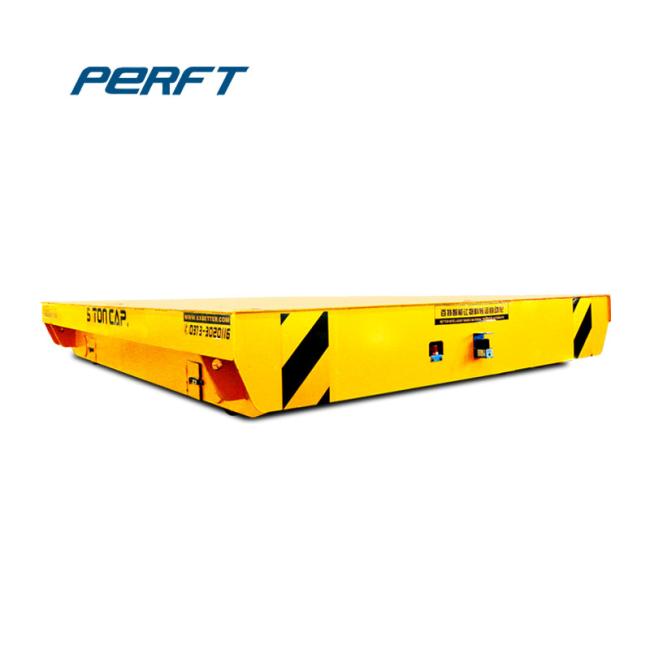

Detailed Image of Transport Carts
Technical Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 | |
| Structure of Frame | Steel plates welded, beam | |||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 | |
| Carts weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 | |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | |||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 | |
| Height of the whole Carts (mm) | 450 | 600 | 650 | 700 | 700 | |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | |
| Turning type | Turning while driving with no stop | |||||
| Control method for turning | Control button | |||||
| Turning structure | Mechanical | |||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | |
| Wheel material | ZG55+hydropurture | |||||
| Running speed (m/min) | 0-15 | 0-12 | ||||
| Brake principle | Electric magnetic brake | |||||
| Ground balance | Mechanical automatic adjustment | |||||
| Operation method | With wire or no wire | |||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | |||||
| Charger's installation | Installed on Carts | Split-type | ||||
| Carts color | Yellow and warning sign | |||||
| Charger's function | Automatic stop for obstacles | |||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | |||||
| Warning equipment | Sound and light | |||||
| Other functions | Turning light, night light and power display | |||||
