Transferring Electric Transfer Cart Steel Coil Mill Rail Car 20T Capacity
Steel coil Mill Rail Car Electric Flat Trolley for Transfering

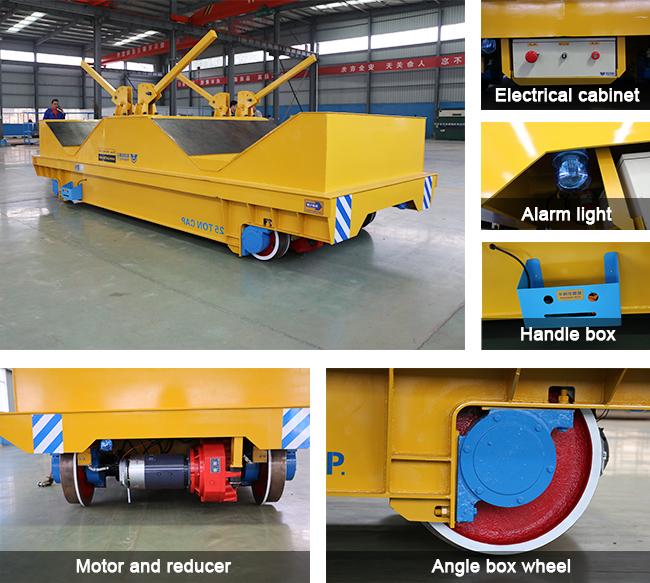

Introduction of Coil Rail MilL Car
The direct-current machine gets its power from the electric control system, which makes the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed. V-shape and roller are mounted on Coil rail transfer trolley to protect the coil from falling down from the Coil rail transfer trolley.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

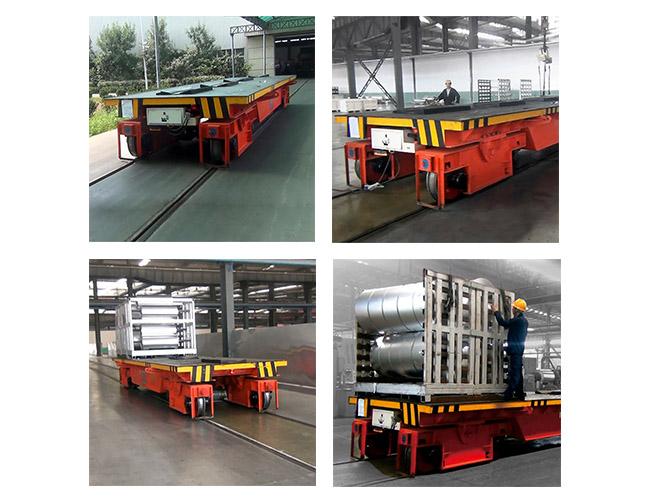

We produce a wide range of rail flat cars. They are used in metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, power generation, coal industry, paper mills and many other lines.
Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
- What material/cargo are you going to transfer?
- What load capacity do you want?
- What kind of ground does the transfer cart operate on? (rails or cement floor)
- What’s the specification table size ? (length,width and height)
- How long is the running distance?
