Metal Coil Transfer Trolley / Motorized Rail Cart With Steel Pipe Handling
Steel Pipe Handling Motorized Transfer Cart on Rail Metal Coil Transfer Trolley

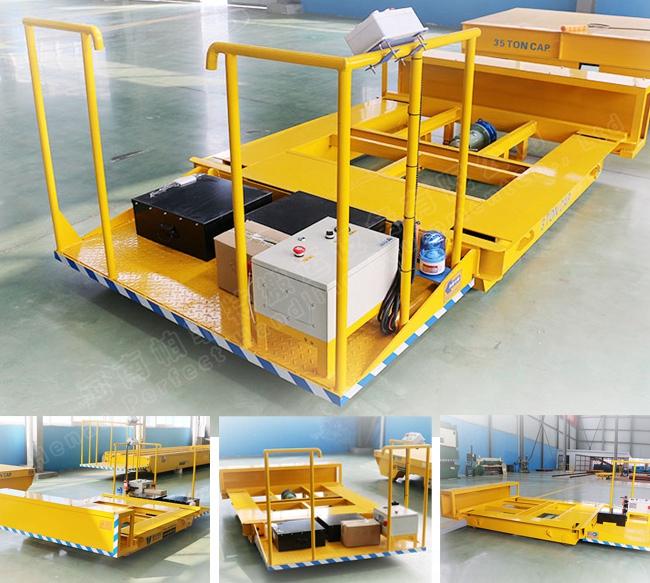

Introduction of Metal Coil Transfer Trolley
The metal coil transfer trolley is powered by the battery. It is used for transporting coiled material or metal parts to cross the curved path or the straight route railroad. The curved rail can be arc shape or S shape, the turning radius is decided by the length of the metal coil transfer trolley and your actual demand. It is a necessary equipment for lifting goods,raising labor efficiency,improving working conditions.
The metal coil transfer trolley can realize full automatic operation by PLC system. It has been applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation

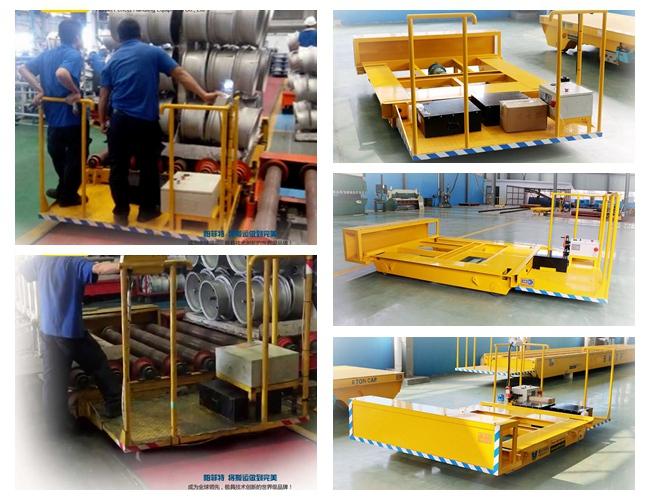

Application Sites of Metal Coil Transfer Trolley
The metal coil transfer trolley mounted V-shape and roller to protect the coil from falling down from the trolley. The V-shape supporting can be designed according to coil diameter, and roller distance can be adjusted as per coil die. V-shape supporting and roller can be removable from the coil transfer cart. We can design coil transfer trolley according to the workshop application, material dimension. It can be applied in all kinds of occasion even severe working environment.
The metal coil transfer trolley is now commonly applied to transfer heavy coils between workshops or from workshop to warehouse. It is used in steel plant, aluminum factory, plastic pipes factory, etc. to transfer rounded material from producing line to store. The power supply of the metal coil transfer trolley can be customized. It depends on the client’s working condition. The power source can be storage battery power, cable drum power, bus-bar power, conductor rail power, towed cable power etc.
Parameter Table of Metal Coil Transfer Trolley
| Specification of Metal Coil Transfer Trolley | |
|---|---|
| Load capacity(T) | 1-300 |
| Table Size(mm) | Standard in 5000*2500*650/ Customized |
| Runing Speed(m/min) | 0-25 |
| Power Feeding Mode | Storage Battery |
| Turning radius | Decide by the length of the handling equipment |
| Recommend rail type | P24 |
| Motor Power | 4 |
| Max wheel load(KN) | 64.5 |
| Reference Weight(T) | 5.5 |
| Wheel dia(mm) | 350 |
| Rail Inner Gauge(mm) | 1435/Customized |
| Wheel Quantity | 4 |
| Ground Clearance(mm) | 50 |
Main Characters of Metal Coil Transfer Trolley
Start smooth and steady with big starting power
High safty performance and environment friendly
Small impact to the gear reducer with long lifetime
No restriction of the running distance and can run on s-shape rail, arc-shape rails
Explosion proof and anti-high temperature
Why Choose Us?
We treat the integrated management idea as a crucial tool to realize value for the benefits and requirements of the final customers and to promotethe business on the national and international markets.
The continuous tenacity of the quality management methodmakes our company to take responsibility for the handling problems of the customers and to solve and provide the most suitable way from a functional, technical, quality and commercial viewpoint.

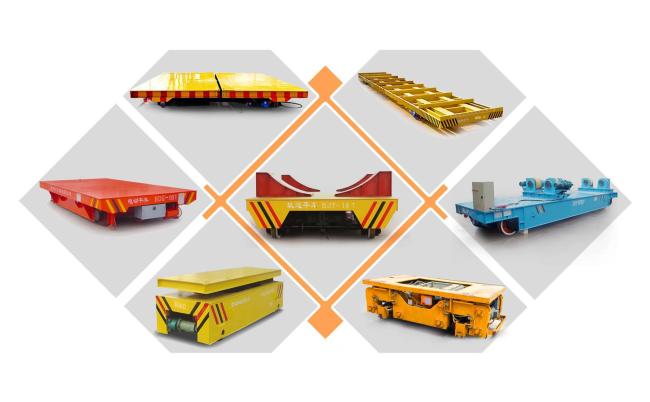

Related Products
