Industrial Die Transfer Cart Transport Steel Tube Polyurethane Coated Wheel
Die Transfer Cart China Rail Flat Cart Transport Steel Tube For Industrial
Introduction of Trackless Transfer Trolley
Our trackless transfer trolleies are powered by battery. It's trackless and consists of steel structure bearing frame. When the current get in the electric control system, the machine is powered to make the trolley stop, start, move forward and move backward. we can provide different kinds of products you want according to your requset.

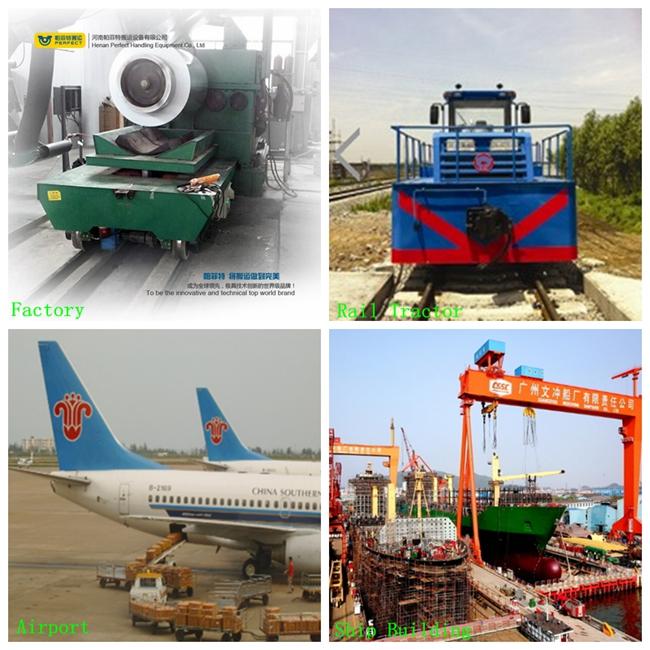

Application Fields of Trackless Transfer Trolley
Our transfer trolleies are used in such lines as shipyards, chemical plant, automotive, mining industry, power generation, coal industry, paper mills, warehouse and many others. We assure to provide the product you want!
Customization of Trackless Transfer Trolley
1. Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
2. Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function,
Weighting system, etc.
3. Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
4. Special Design
Round corner, Hold pendant box, Lifting hole, etc.
Parameters of Trackless Transfer Trolley
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | |
| Battery Capacity | 180 | 180 | 330 | 440 | |
| Battery Voltage | 24 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |

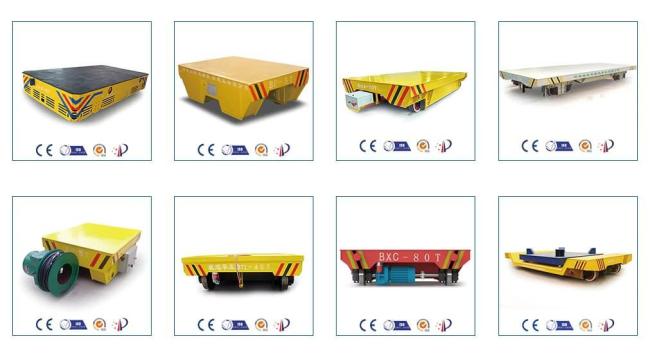

Other Products
We also produce steel frame trailers, coil transfer carts, battery powered carts, cranes and many other different kinds of products.
Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
- What material/cargo are you going to transfer?
- What kind of ground does the transfer cart operate on? (rails or cement floor)
- What’s the specification table size ? (length, width and height)
- How long is the running distance?
- How many working hours do you have everyday?
