Smooth Ground Heavy Duty Material Handling Carts Reliable And High Efficient

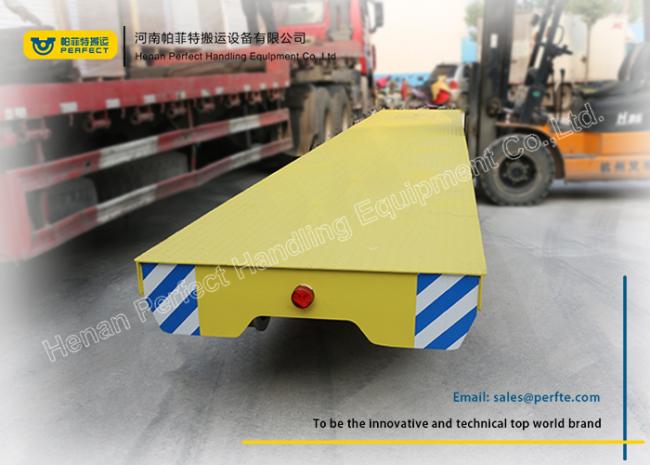

Yellow Heavy Cargo Handling Material Transfer Cart with Steel Platform
General Preview of Material Transfer Cart
Our BXC series pallet transport vehicle is powered by storaged power. The battery is fitted in the inner of the vehicle. It's elegant, reliable and high efficient. You need to charge it for 8 hours and then keep it work for over 4 hours. It's a right transfer vehicle for you!

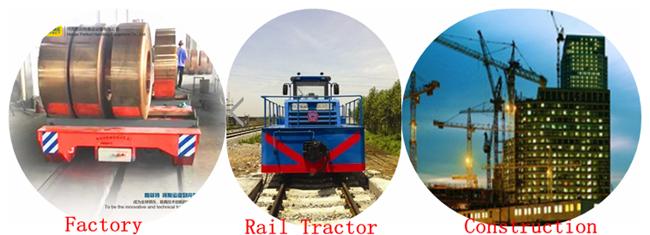

Application fields of Material Transfer Cart
Our Transfer vehicle can be used in many different fields. For example:Paper Making, in the process of paper making, workers need to transport raw materials-wood, transport papaer pulp and finally trasport products. It works smoothly and make sure the maximum safety.Factory transpor,In factory, the space is limited. Sometimes, it's hard to transport materials. However, our transfer vehicle can turn in 360 degrees. It's no doubt that this is a good choice for you! Ship Building,Our transfer vehicle can also be used in ship building industry. We can use our transfer vehicle to transfer heavy steel and carry out other heavy duty tasks.
Parameters of Material Transfer Cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | |
| Battery Capacity | 180 | 180 | 330 | 440 | |
| Battery Voltage | 24 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |

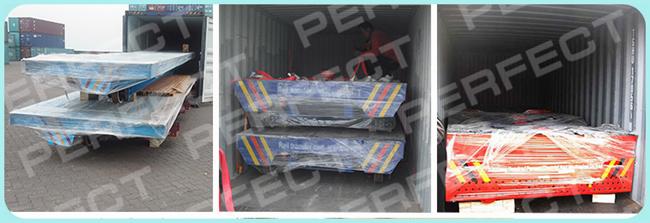

Packing & Shipping
We will try our best to make sure that your products are delivered safely. The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
- What material/cargo are you going to transfer?
- What load capacity do you want?
- What kind of ground does the transfer cart operate on? (rails or cement floor)
- What’s the specification table size ? (length,width and height)
- How long is the running distance?
- How many working hours do you have everyday?
- What special requirements do you have?
