Blue Towed Cable Automated Guided Vehicles / Electric Transfer Cart 4t
4T Blue Towed Cable Automated Guided Vehicles Rail Electric Transport Wagon

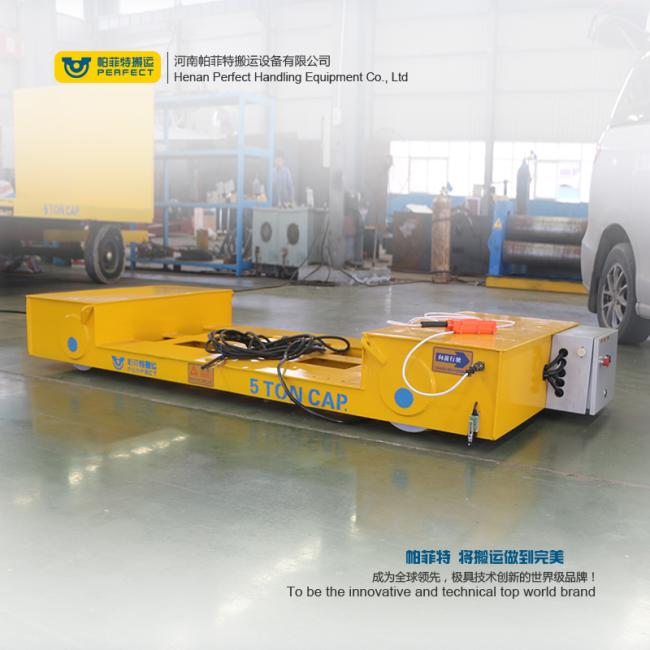

Introduction of Towed Cable Transport Wagon
This kind of cable towed transport wagon is reserched and developed by us for special using. It's powered by towed cable. It has no limitation of running distance and running speed. Our transport wagons don't have complex structure and easy for you to operate. Environmental pollution has become more and more important and our transport wagons are powered by electricity. It's no doubt that this is an environmental friendly and cost saving choice for you!
Working Principle of Towed Cable Transport Wagon
BTL series Towed Cable Transport Wagon permit the 380V alternating current get in the electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.
Application Sites of Towed Cable Transport Wagon
Our Towed Cable Transport Wagon are special designed for special working conditions such as high temperature, big load capacity and so on. Out of having no limitation of working time, you can operate it at any time.
Usually, we will provide nonstandard products for our clients. For instance, when we are sure to have a cooperation, we will learn the working sites, such as airport, wharf, mine, factory and so on, and then we will provide the diagram for you. After getting your permission, we will produce the specified products you want. Our products can be used in many different lines. We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines.
Units of Towed Cable Transport Wagon
Power System: It's powered by cable power. The length of the cable can be customized. Normally, the wheel is make up of cast steel wigh big load capacity. The motor is AC motor.
Control System: This wagon is controlled by control box mounted on it. Of course, you can also control it by wire remote control and pendant. In a word, you can follow your heart to control it.
Brake System: You can press the stop button fitted on the wagon or use the remote control to operate the wagon. It adopt electric magnetic brake and can stop smoothly.
Parameters of Towed Cable Transport Wagon
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
- What material/cargo are you going to transfer?
- What load capacity do you want?
- What kind of ground does the transfer cart operate on? (rails or cement floor)
- What’s the specification table size ? (length,width and height)
- How long is the running distance?
- How many working hours do you have everyday?
- What special requirements do you have?
