2 Ton Plant Motorized Material Handling Carts Steel Transfer Car No Power
Steel Transfer Car 2Ton Motorized Handling Trailer Rail Car For Plant
Product Preview of Motorized Handling Trailer
Our Motorized Handling Trailer don't have power. Usually, it need driven by manual or other power machine. Regards shape of the car, we will design suitable appearance according to client's appliciation. Our transfer cart are used for rail transportation. We can also design material wagon for cement floor transportation. Our load capacity is no less than 120% and we can also customize the table size, safety device and other devices for you according to your demands. It’s a cost saving and right choice for you!
Parameters of Motorized Handling Trailer
| Model | BP-5T | BP-10T | BP-15T | BP20T | BP-30T | BP-45T | BP-60T | |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 45 | 60 | |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 | |
| Height (mm) | 600 | 700 | 750 | 750 | 800 | 850 | 950 | |
| Wheel Quantity | 4 | 8 | 8 | 8 | 12 | 12 | 12 | |
| On cement floor | Tire Specification | 305*165 |
559*254
|
559*356 |
22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
| Tire Material |
Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
| On rail | Rail Inner Gauge(mm) | 1435mm | ||||||
| Wheel material | LD steel wheel, Angel box wheel | |||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 | |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 | |
Package & Transportation
The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

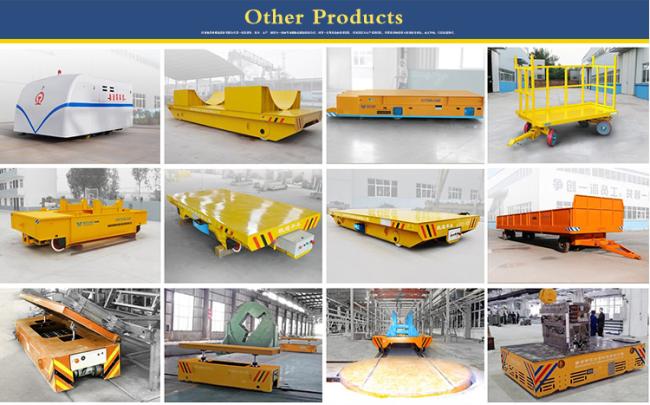

Other Products
We could provide you with rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive etc.Your satisfaction is what we are striving for!
Why Choose US
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
