Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage
Mass Custom Assembly Line Motorized Transport Electric Steel Transfer carriage
Product Introduction---Electric Steel Transfer carriage
The electric steel transfer carriage is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles the load capacities up to 300 tons.
According to your specific needs, we will provides you the most professional products. our electric steel transfer carriages are found in all sectors, with excellent craftsmanship and technical team we produce handling equipments for various industries and manufactures.

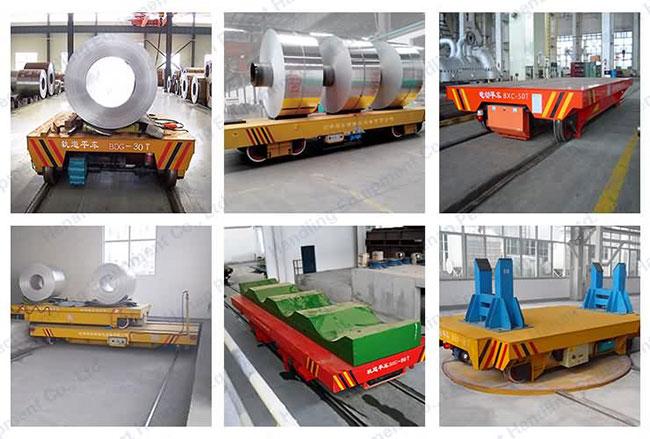

Application Sites---Electric Steel Transfer carriage
This electric steel transfer carriage is commonly applied for material and large facilities transportation in steel plant, aluminum factory, plastic pipes factory, chemical engineering, construction site etc from producing line to store or walking along the assembly line.
In order to ensure security and convenience, the fixing device or V-frame device can be added. It can protect the steel coils or other cargos fall down from the electric steel transfer carriage . According to diffenent using condition, the hydraulic lifting device can be installed.
Technical Parameters---Battery Powered Material Handling Vehicle
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
|
Advantages---Electric Steel Transfer carriage
- Running on the straight railways or on the ‘S’ and arc-shaped railways;
- Load capacity up to 300tons;
- Simple operation, safety, flexibility, long lifetime, cost effective and no pollution;
- Variable speed
-
Warning light, dead man control, e-stop, buffer

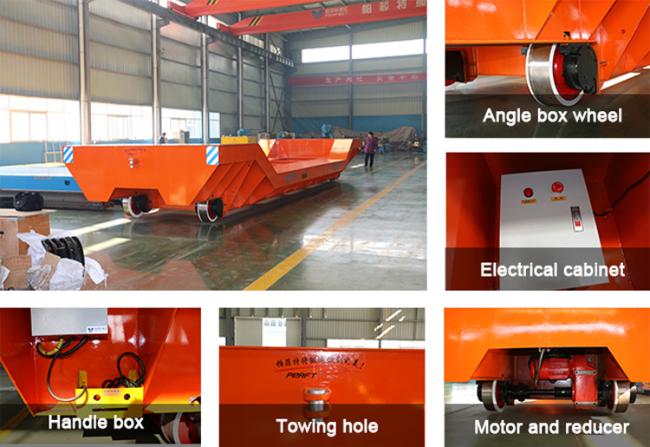

More Details---Electric Steel Transfer carriage
Cart Frame
The cart frame adopt Box girder structure which fabricated of two longitude girder and several beams and it has the advantages: table evenly bear force and not deform. Polishing, get rid off dust and make the appearance beautiful.
Wheels
Wheel material: cast steel 55. It can be casted or foundry as per client demand. It can be double collar wheel or single collar wheel type.
Driving system
Driving system include motor and reducer. Motor is DC motor and has the features: stable start, large start torque, samll impact to the reducer, low voltage, save energy and long service time.
The reducer is harden surface and has high mechanical transmission efficiency, low noise, easy installation and maintenance. Shafts mounted on speed reducer all rotate flexibly.
Battery
Optional in lead acid battery and free maintenance battery. 5-6 working hours with full load and continuous work and providing intelligent battery charger
Why Choose Us?
- We have a professional research staff and a excellent sales team,can privede you a quick and professional reply.
- Exclusive engineer support at any time, so we can design within 24 hours.
- 12 Month warranty for whole material handling equipments, providing components free of charge.
- Low charge for continue maintenance when warranty is expired.
- we can produce the heavy duty carrying capacity upwards to 300 tons ,just give us your demand.
- We can provide free training to end-users, don't worry about the installation.
- Products are sold to more than 30 countries: Europe, North America, South America, Middle East etc
