Battery Powered Industrial Motorized Carts Fully Automatic Operation PLC System
5Ton Steel Transport Car Utillity Industrial Trail Running On Rail
Product Introduction
BDG series rail powered transfer car get its power from railway. The 380V alternating-current is transformed into safe current 36V. The current collectors mounted on the trolley get the 36V current from Combined with PLC system, full automatic operation is available. It’s widely used, life long, safe and flexible.
Parameter
| Model | BDG-2t | BDG-16t | BDG-30t | BDG-50t | BDG-100t | BDG-150 | |
| Rated Load(t) | 2 | 16 | 30 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 600 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 400 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Running Distance (m) | 70 | 70 | 70 | 50 | 50 | 50 | |
| Motor Power(kw) | 1 | 2 | 3.5 | 5.5 | 11 | 15 | |
| Transformer Power (KVA) | 3 | 6.8 | 10 | 10 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance (m) | 70 | 70 | 70 | 50 | 50 | 50 | |
| Recommended Rail Model | P15 | P24 | P43 | P43 | QU100 | QU100 | |
Usage
The transfer cars are used to carry loads along assembly lines, transfer material from one place to another, store and transport entire shift worth of production.
Our Other Products
We are a professional company in the product of materimal handling eqipment. We produce a wide range of transfer wagon such as coil transfer carts, battery powered carts, cranes and many other different kinds of products. If you need special type, customization is also accepted. According to your demands, we can assure that you will be satisfied with our product and service.

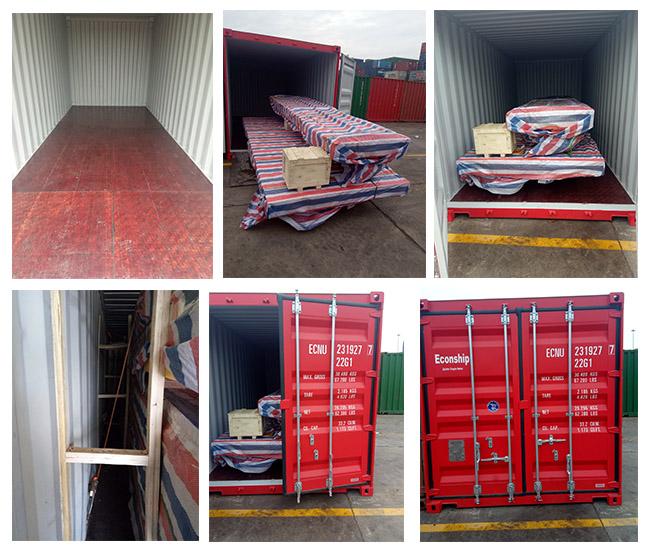

Package & Transportation
For length is less than 6m, the width is less than 2.2m. Electric Rail Vehicle will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Rail Vehicle needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
After sales service
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 2 years, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you.
Why Choose US
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
