Black Flatbed Rail Transfer Cart Heavy Load Foundry Transport Car Trailer
Black Flatbed Rail Transfer Cart Heavy Load Foundary Transport Car Trailer
Product Introduction
Our BTL Series of cars is powered by dragging cable. The 380V alternating current is leaded into electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.
Spare Parts Of Transfer Cart
Our material handling cars are mainly made up of wheel, motor, reducer, remote control and handle, brake system. We promise all of the spare parts will be high quality and durable.

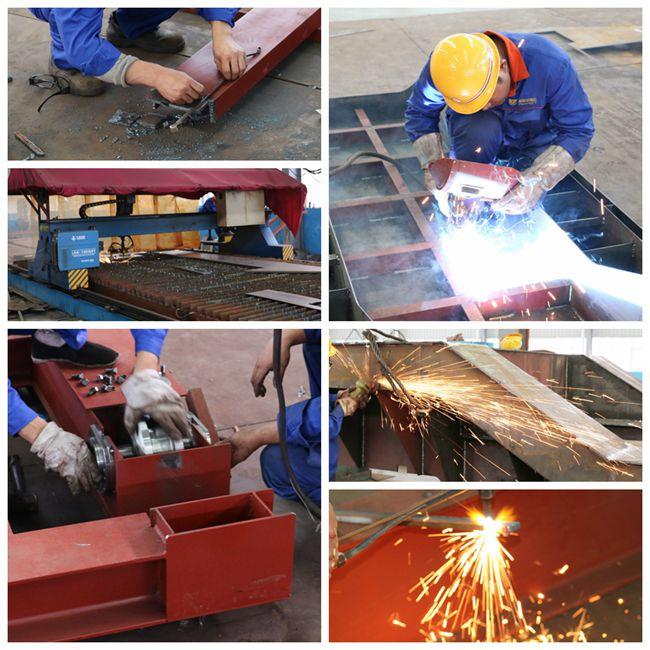

Process Technology
1. CNC Cutting
The steel plate is transported from warehouse to CNC cutting workshop for cutting.
2. Preliminary Assembling
Workers put the cut steel plate together according to the design drawing.
3. Welding
Weld the steel plate with automatic welding machine after the preliminary assembling.
4. Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
5. Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
6. Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
7. Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
8. Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.
Parameters
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
About US
Henan Perfect Handling Equipment Co., Ltd. offers both standard solutions and customized solutions specially conceived to solve specific and complex handling needs. Our products not only have sold across the country,but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal and many other countrys.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
