Cement Floor Motorized Transfer Trolley / Electric Transfer Cart 1435 Mm Rail Gauge

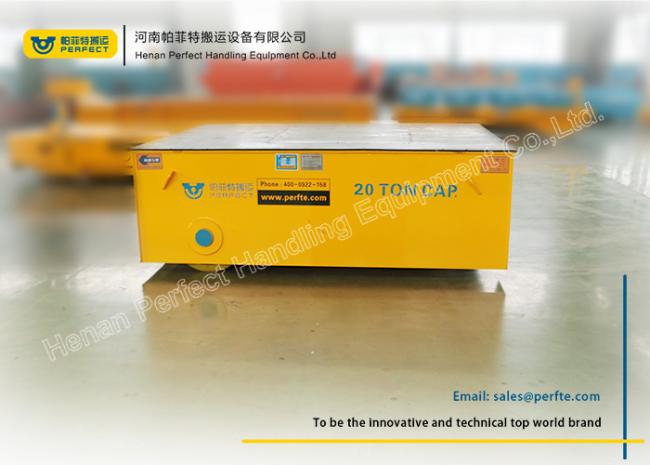

20 Ton Yellow Motorised Electric Transport Trailer on Cement Floor
Introduction of Motorised Electric Transport Trailer
Our motorised electric transport trailer are made up of battery power. It's used for material transportation. Transport trailer made by our company can be used for heavy and light duty transportation. Our load capacity vaties from 1 to 300 ton. It can turn for 360 degree without changing directions. It uses magneficant brake when the trailer stop, it will lock automatically. You can also use your hands to open it if you wanna to move the trailer without connecting current. Besides, customization is also acceptable. We can provide products according to your requirment.
Customization of Motorised Electric Transport Trailer
Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.

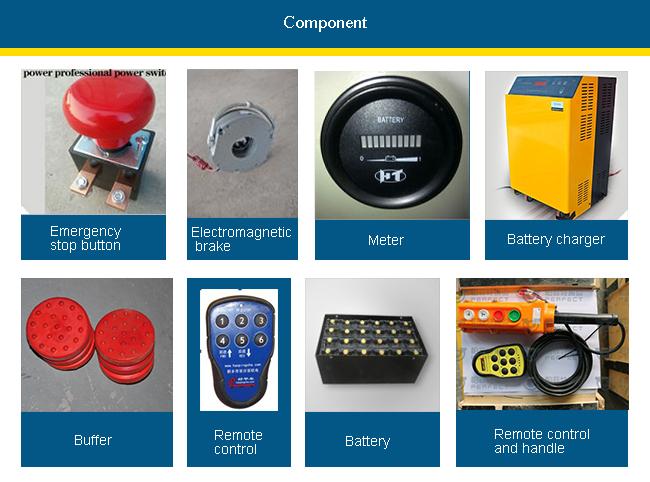

Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design
Round corner, Hold pendant box, Lifting hole, etc.
Application of Motorised Electric Transport Trailer
Our transfer trailer can be used in many different sites. When you are constructing, you can use it to transport heavy construction materials. You can also use it in mine to transport stones, equipment or some other materials. You can also see our transport trailer in airport to transport l. All in all, you can use our transfer trailer to transport anything you want.
Parameters of Motorised Electric Transport Trailer
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | |
| Battery Capacity | 180 | 180 | 330 | 440 | |
| Battery Voltage | 24 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
Q&A
Whar kinds of products do you paovide?
We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms.
Is your products customized?
Most of our products are customized as per your demand.
What advantages do your products have?
Low noise, high efficient, cost saving, environmental friendly.
Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
- What material/cargo are you going to transfer?
- What load capacity do you want?
- What kind of ground does the transfer cart operate on? (rails or cement floor)
- What’s the specification table size ? (length,width and height)
- How long is the running distance?
- How many working hours do you have everyday?
- What special requirements do you have?
