Construction Pallet Transfer Carts Flatbed Transport Vehicle Steel Structure
1Ton Load Steel Structure Pallet Transfer Carts Flatbed Transfprt Vechile
Working Principle of Pallet Transfer Carts
The pallet transfer carts are powered by battery which is installed inside the car. The pulling motor get current from electric control system that makes it start, stop, move forward, move backward. And this series of car could run on the S-type, L-type track or curved track, even in inflammable and explosion environment, the transfer car also can works well. In addition, the warehouse transport trolley is suitable to be used in the long running distance transportation and low using frequency.
Process Technology Of Steel Coil Transfer Trailer
1. CNC Cutting
2. Preliminary Assembling
3. Welding
4. Post weld treatment
5. Spray Primer
6. Assembling
7. Paint finish
8. Debugging
First step, we choose high quality steel plate send to CNC cutting workshop for cuttingAfter that, our workers put the cut steel plate together according to the design drawing and weld them together, Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress. Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.Assemble the structure parts after spraying primer with wheels, motors and gear box, etc. Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.The last step is debugging,After the inspection, the cart will be transported to storage area

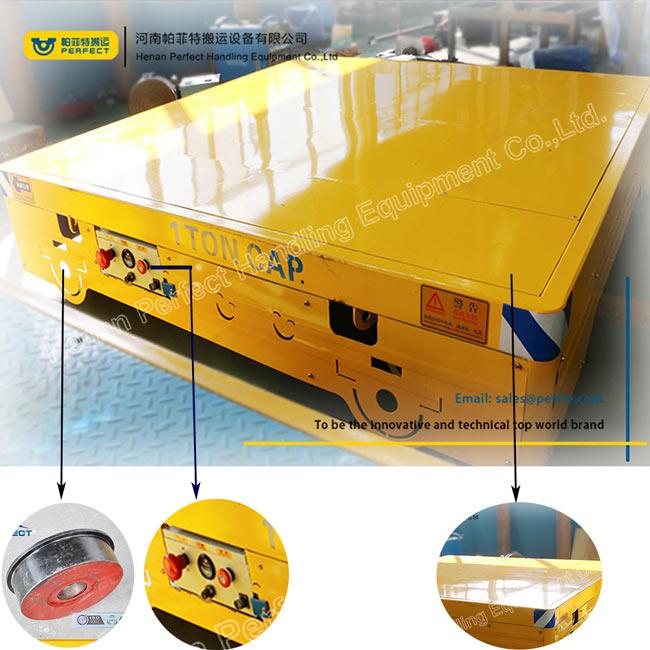

Main Parts Of Pallet Transfer Cart

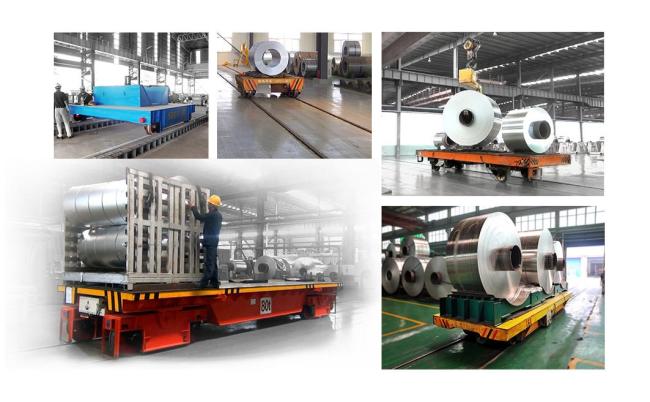

Application
Both of our products are mainly applied in industrial fields. They can move heavy duty material easily.
Parameter Table of Steel Coil Rail Handling Trailer
| Model | BXC-2t | BXC -10t | BXC -20t | BXC-50t | BXC -100t | |
| Rated Load(t) | 2 | 10 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 3600 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 500 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 270 | 300 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 1.6 | 2.2 | 5 | 10 | |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 4.2 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P18 | P24 | P43 | QU100 | |
Power Supply Mode Choice
There are several power supply modes you can choose.Such as battery powered, busbar powered, rail powered, cable drum powered and trailing cable powered. If you don't know how to choose it, we can also give our proposals. We will supply a suitable scheme for our clients.
Advantage Of Steel Coil Rail Handling Trailer
1. It causes low noise level and give workers a good working environment.
2. All of our products are easy for operation.
3. It could be operated in the harsh environment.
4. It can realize full automation operation.
5. High temperature and explosion proof;
6. With simple structure and cost effective;
7. Running distance is unlimited.
Why Choose Us?
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period, we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
