Heavy Duty Pallet Transfer Carts , Flatbed Rail Transfer Trolley For Steel Plant
Heavy Duty Pallet Transfer Carts Flatbed Rail Transfer Trolley For Steel Plant
Working Principle of Pallet Transfer Carts
The pallet transfer carts are powered by battery which is installed inside the car. The battery powered series warehouse transport trolley, by contrast, has plenty of advantages: safety, flexible, cost-effective etc. The battery is installed in the transport truck. The battery supply electricity to the DC motor through the electrical control system to make the transport trolley start, stop, go forward and backward, meanwhile the speed is adjustable, besides that, many other functions can also be conducted by the aid of this kind of principle

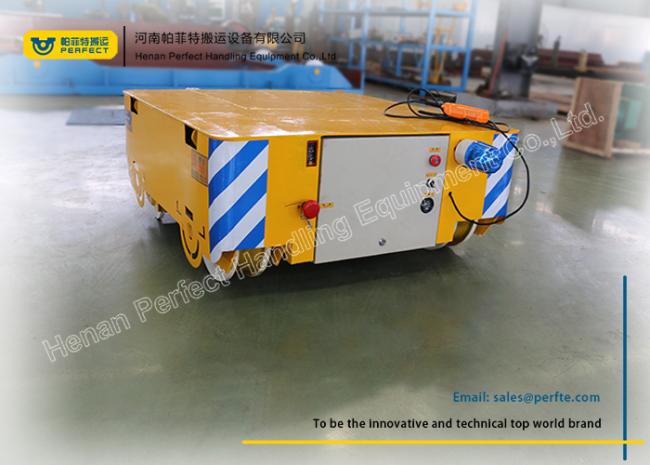

Photo Show
Process Technology Of Steel Coil Transfer Trailer
1.CNC Cutting
2.Preliminary Assembling
3.Welding
4.Post weld treatment
5.Spray Primer
6.Assembling
7.Paint finish
8.Debugging
First step, we choose high quality steel plate send to CNC cutting workshop for cuttingAfter that, our workers put the cut steel plate together according to the design drawing and weld them together, Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish. The last step is debugging,After the inspection, the cart will be transported to storage area
Application
Both of our products are mainly applied in industrial fields. Such as metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coil industry, paper mills, metal working, warehouse and so on.
Parameter Table of Steel Coil Rail Handling Trailer
| Model | BXC-2t | BXC -10t | BXC -20t | BXC-50t | BXC -100t | |
| Rated Load(t) | 2 | 10 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 3600 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 500 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 270 | 300 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 1.6 | 2.2 | 5 | 10 | |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 4.2 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P18 | P24 | P43 | QU100 | |
Power Supply Mode Choice
There are several power supply modes you can choose. Such as battery powered, busbar powered, rail powered, cable drum powered and trailing cable powered. If you don't know how to choose it, we can also give our proposals. We will supply a suitable scheme for our clients.
Advantage Of Steel Coil Rail Handling Trailer
1. It causes low noise level and give workers a good working environment.
2. All of our products are easy for operation.
3. It could be operated in the harsh environment.
4. It can realize full automation operation.
5. High temperature and explosion proof;
6. With simple structure and cost effective;
7. Running distance is unlimited.
