Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane
Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane
The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane is powered by battery and the battery is installed inside the Rail Transfer Cart.Because there is no wires,so the running distance is not limited.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane can be used to L-form track or S-form track or curved track,and inflammable, explosive and ferry environment.The electric flat transfer cart can be added V shape and U shape device for coil and aluminum material transportation.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane running on the rail,so the Ground Clearance(mm) required 50.
Componence
Advantage
1.The wheel base can be designed according to your track distance
2.The capacity of the rail transfer cart can be up to 150 ton
3.Can have a hydraulic lifting equipment if necessary
4.If there is a turning track on the track, because of the special design of the wheel, the flat rail transfer cart can run safely on the track
5.There is no limitation of the running distance and running route
6.Flat rail transfer cart can be combined with crane for factory material transportation
7.Suitable for explosion-proof environment
8.The wheel passes by forging the wheel
Product parameters
| Model | BXC2t | BXC20t | BXC50t | BXC100t | BXC150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | ||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | ||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | ||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | ||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | ||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | ||
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | ||
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | ||

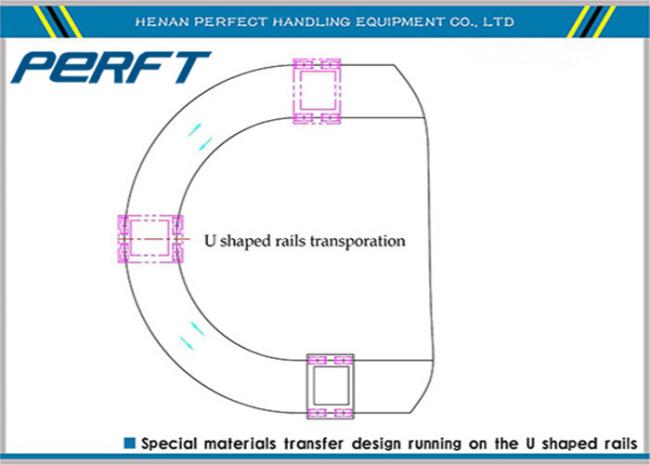

The easy scheme for your reference
Application

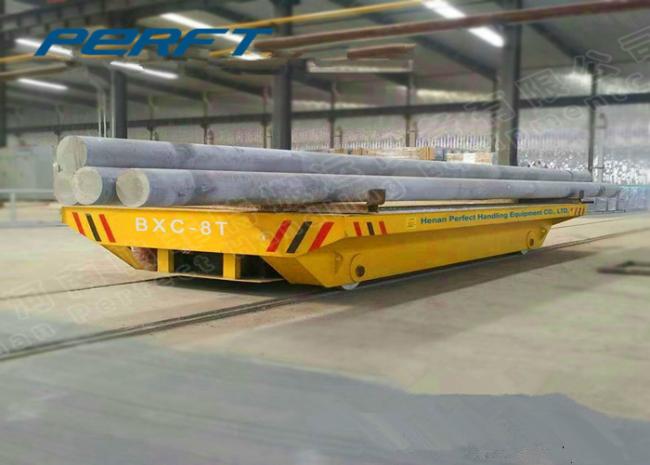

The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane has a small body,and can be easy for factory warehouse material transportation.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane can be a good assistant to better the transport efficiency and transportation costs.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane can be a good solution for iron factory,chemical plant,Logistics workshop transportation(Trackless transfer car can be a good slolution for warehouse material transportation),port transportation.High temperature environment(can add the explosion-proof equipment if need),Aluminum coil(can add V/U shape to stabilized coil) or other transport of circular materials(Add roller support if need),Hot metal material for Indoor or outdoor transportation.
